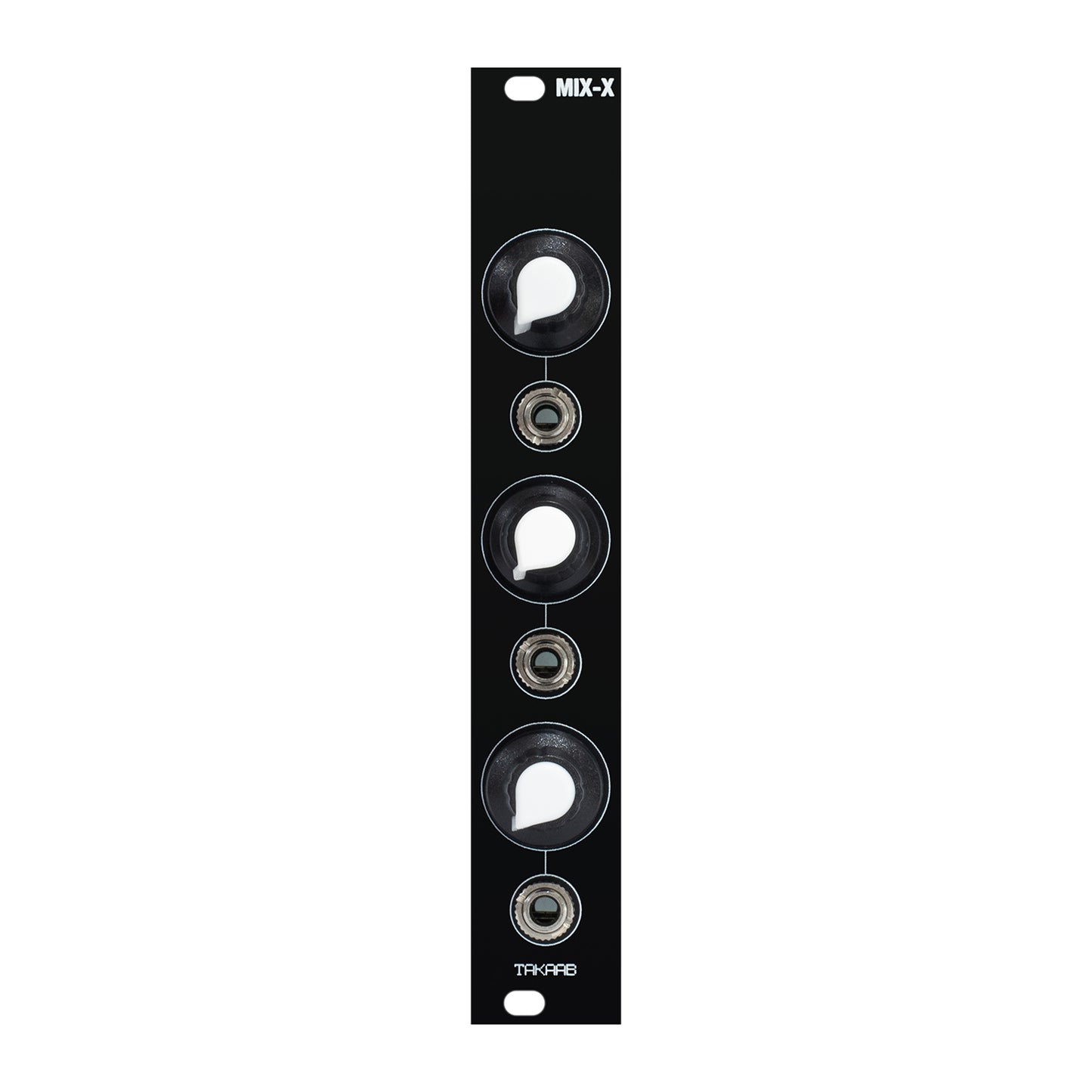

• Takaab MIX-X - Three Channel Expander for Takaab MIX v2 - Front panel view

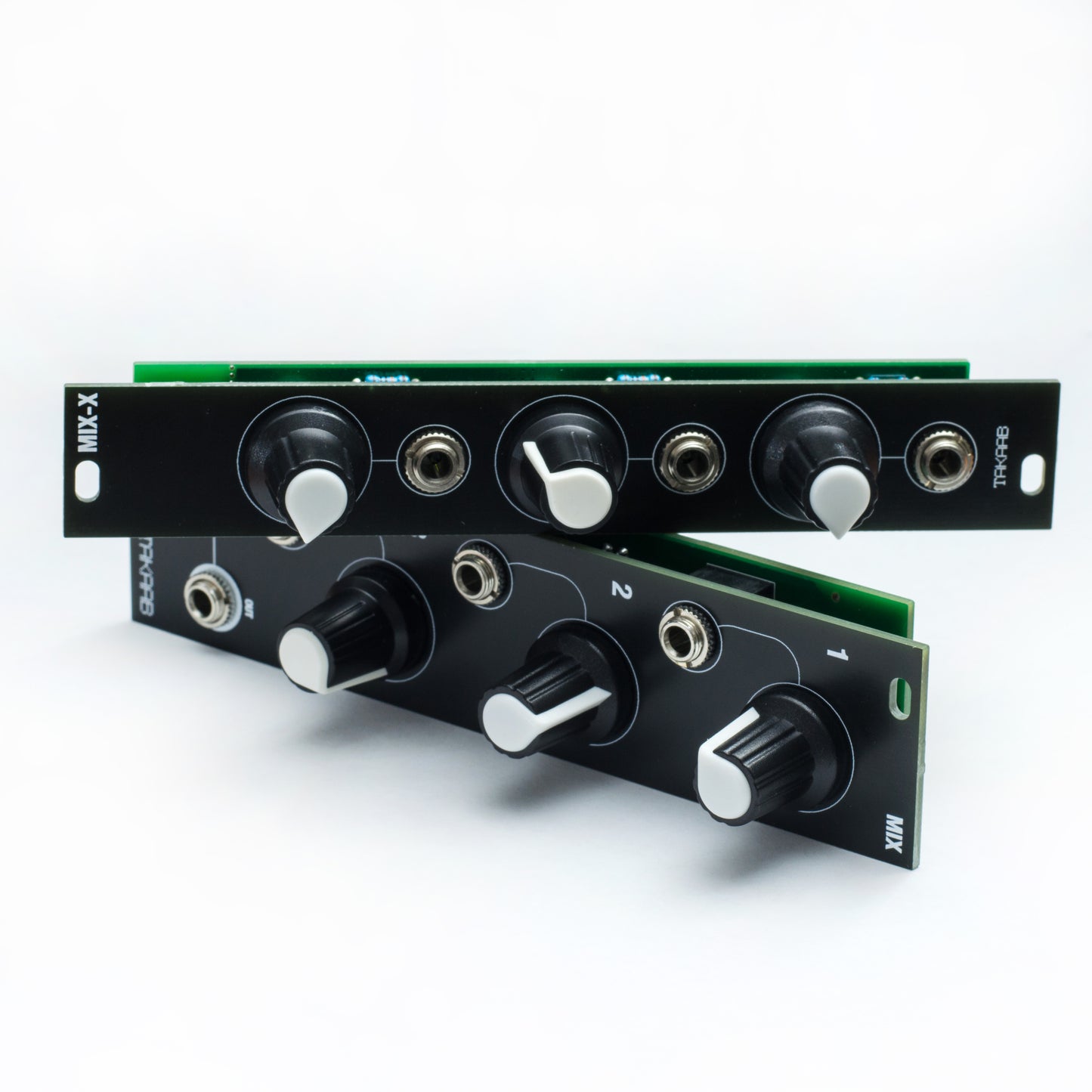

  • Takaab MIX-X - Three Channel Expander for Takaab MIX v2 - Side view
1 2

Takaab MIX-X - Three Channel Expander for Takaab MIX v2 & Takaab 2MIX

Takaab MIX-X - Three Channel Expander for Takaab MIX v2 & Takaab 2MIX

£19.50
£19.50
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 0mA
-12V : 0mA
+5V: 0mA

Size

Width: 4 HP
Height: 3 U
Depth: 31 mm

Brand: Takaab by Siam Modular

* This is a not a standalone module. For use only with Takaab MIX v2 or Takaab 2MIX *

Adds three extra channels to the Takaab MIX. or Takaab 2MIX.

Connections

Use a 2.54mm 2-pin jumper cable to connect to one of the three pin pairs on the MIX. Make sure to connect GND to GND (top row of pins) and SIG to SIG (bottom row); the cable should not twist. You can connect up to three MIX-Xs to one MIX this way.

Package Contents

1x Module, 1x 2-pin jumper cable, 2x M3 screws.
