Takaab MIX v2 - Three Channel AC/DC Mixer
Takaab MIX v2 - Three Channel AC/DC Mixer
Regular price
£26.00
Regular price
Sale price
£26.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
Specifications
Current Draw
+12V : 15mA
-12V : 15mA
+5V: 0mA
Size
Width: 6 HP
Height: 3 U
Depth:
Brand: Takaab by Siam Modular

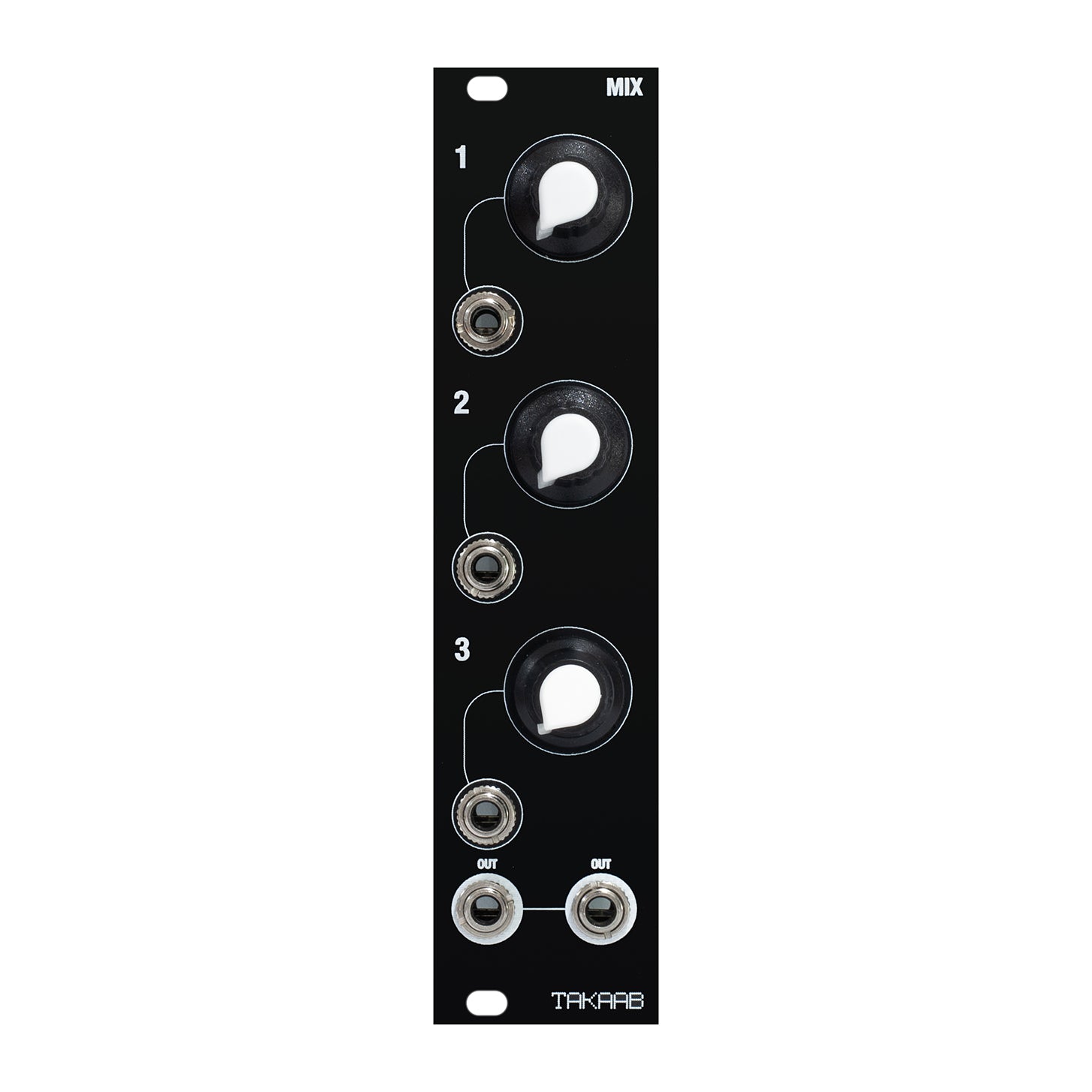

A basic but useful 6HP three channel powered mixer for your Eurorack Synthesizer. Use to sum and attenuate either voltages or audio signals.
3 attenuatable inputs, 2 (duplicate) outputs.
Jumpers
Jumping the header on the back of the module pads the output by -6dB in case you want to use the MIX as an output module.
Expansion

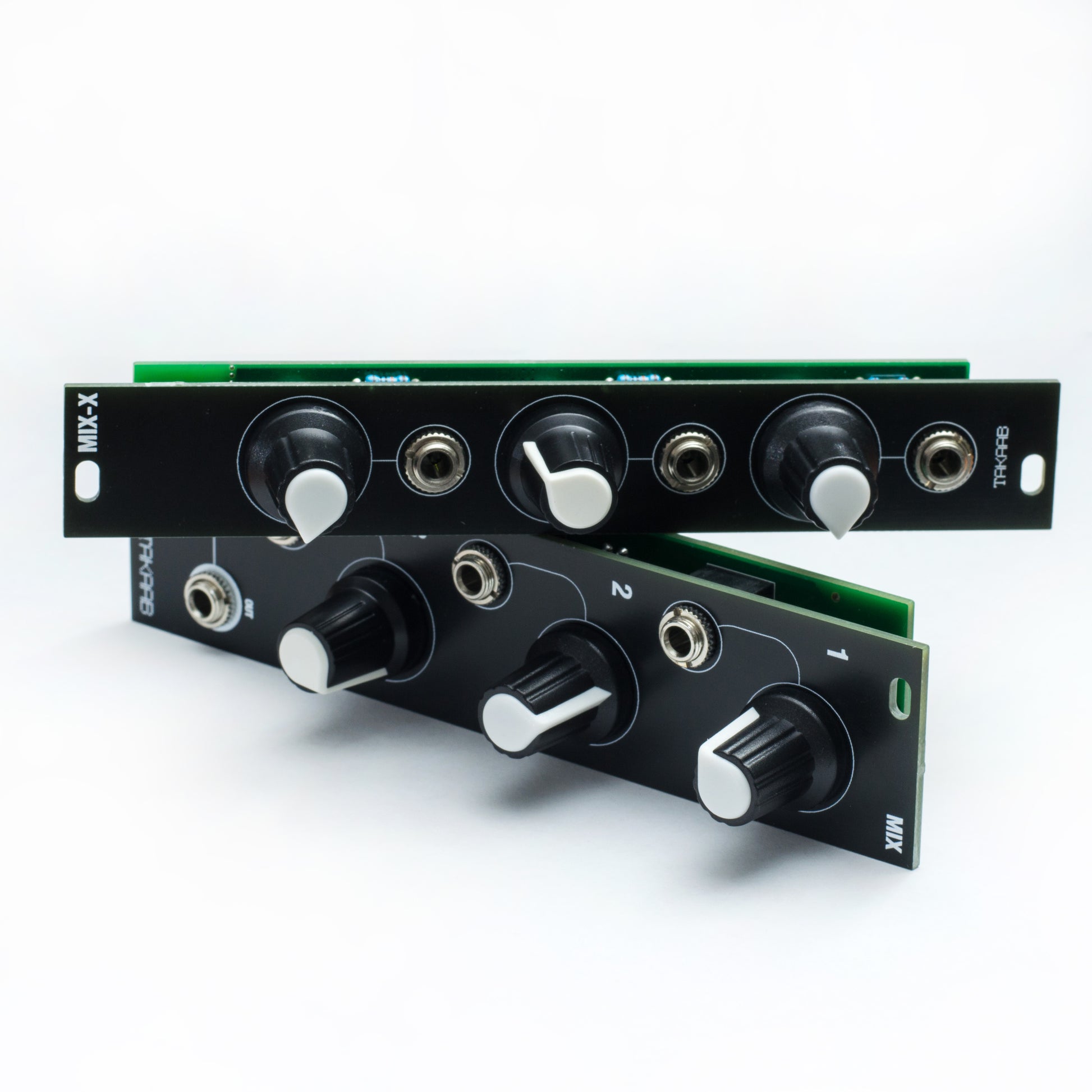

MIX version 2 can be expanded with up to three Takaab MIX-X modules adding an extra three channels per module.
Package contents
1x mixer module, 1x 10-16 pin power cable, 2x M3 screws, 1x jumper.
