Voxmachina MAK MAK Quad VCA / Attenuator / Mixer DIY PCB Kit

Voxmachina MAK MAK Quad VCA / Attenuator / Mixer DIY PCB Kit

Regular price £30.83
Regular price Sale price £30.83
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 20mA
-12V : 20mA
+5V: 0mA

Size

Width: 12 HP
Height: 3 U
Depth: 33 mm

Brand: Voxmachina

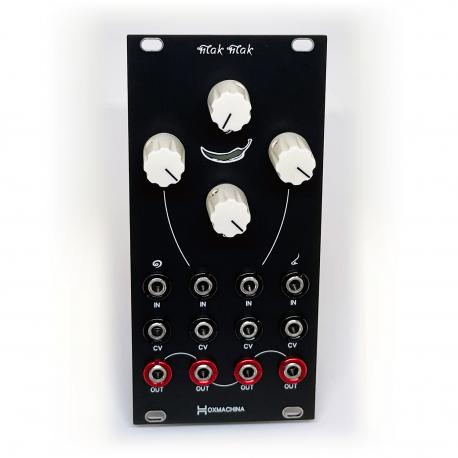

"Mak Mak" (more, more in Thai) is a quad channel module in 12hp; each channel can be a VCA or an attenuator or part of a three-channel mixer and as a mixer (channel four), it can also drive to clipping levels on the output. A little headroom has been added to create a nice saturation kind of effect if desired; you can see on the panel as well the led turning red if it's clipping.

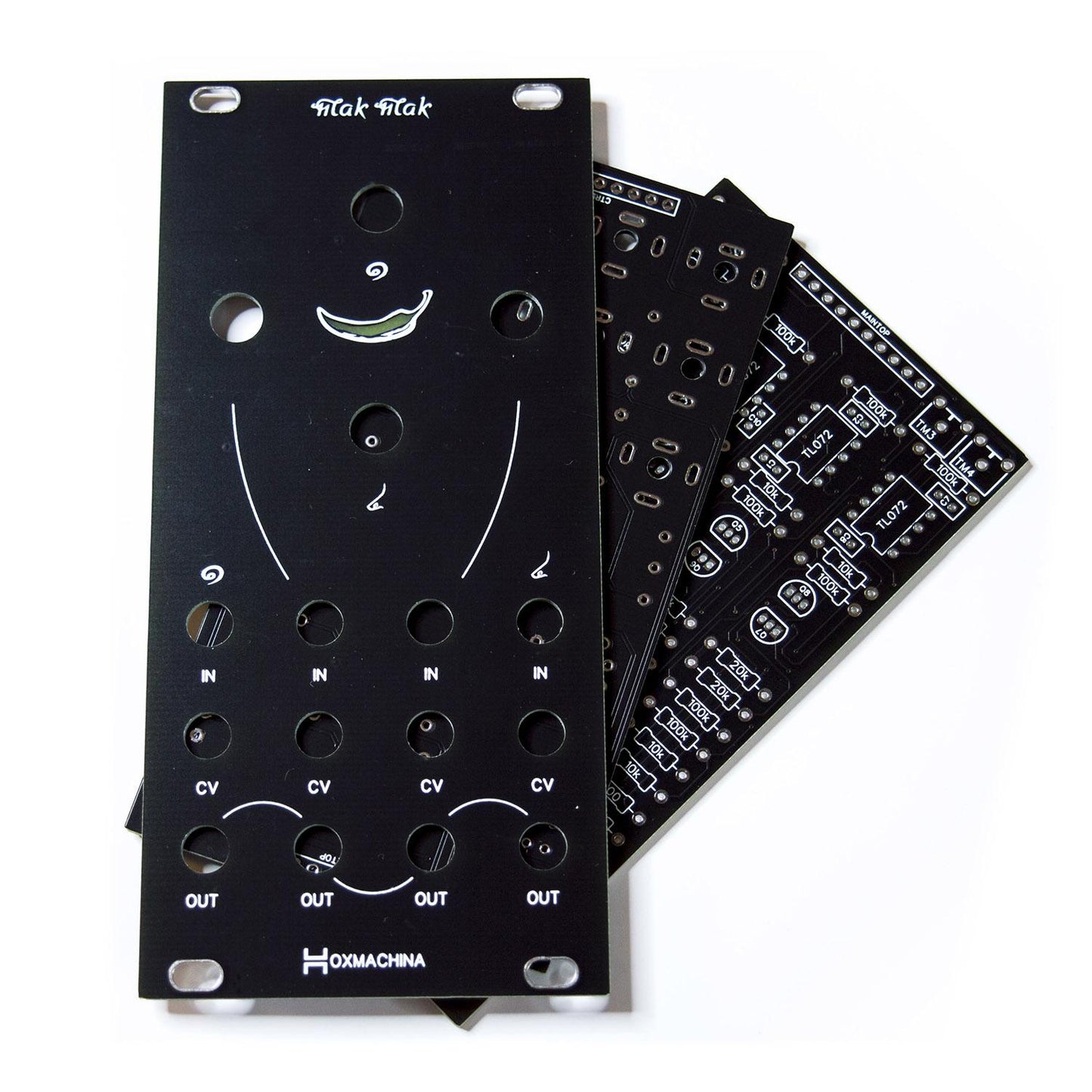

PCB KIT INCLUDES MAIN PCB + CONTROL PCB + FRONT PANEL.

All files including BOM and build instructions at Voxmachina's Github
