Voxmachina LEO LEO Matrix Sequencer
Voxmachina LEO LEO Matrix Sequencer
Specifications
Specifications
Current Draw
+12V : 35mA
-12V : 20mA
+5V: 0mA
Size
Width: 42 HP
Height: 3 U
Depth:
Brand: Voxmachina

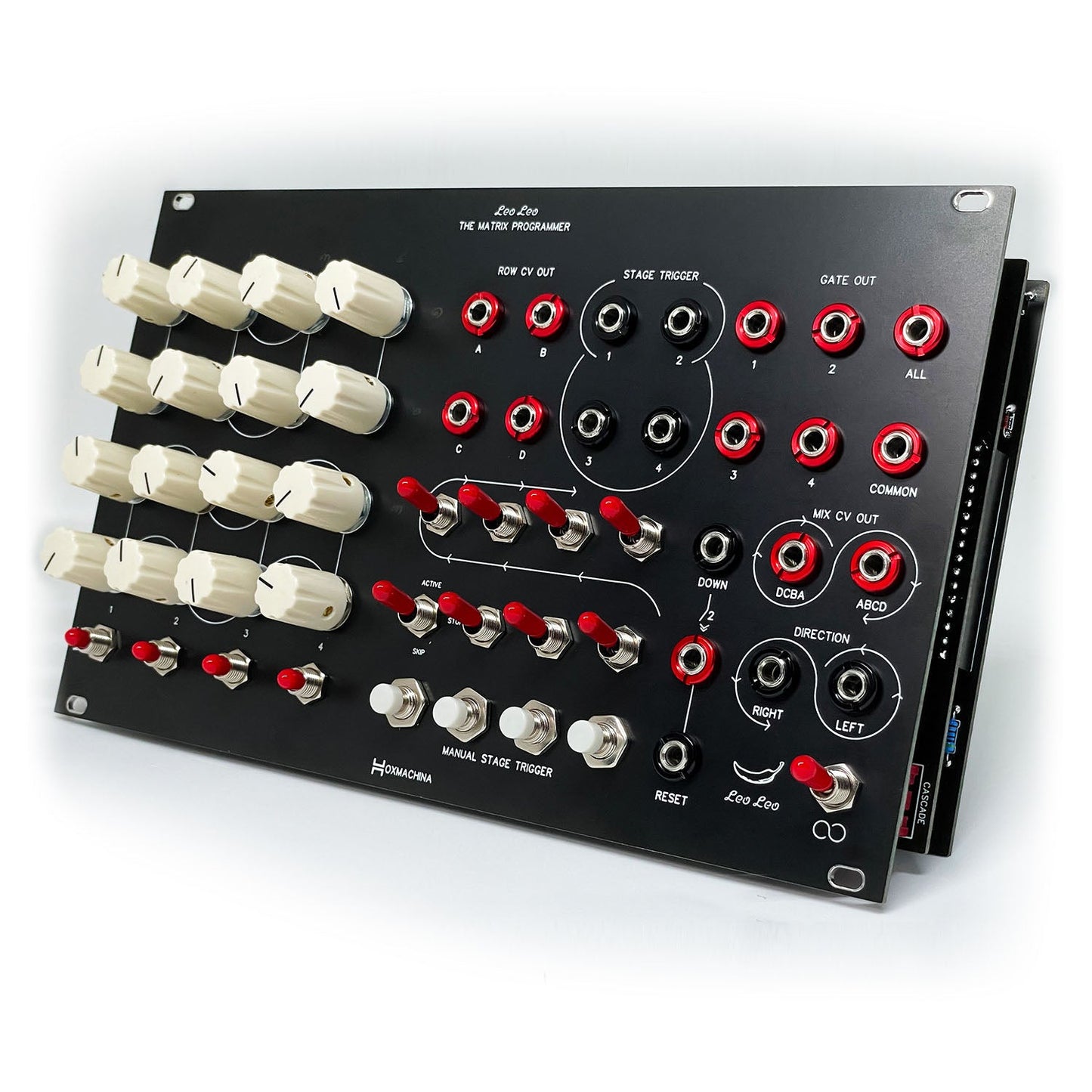

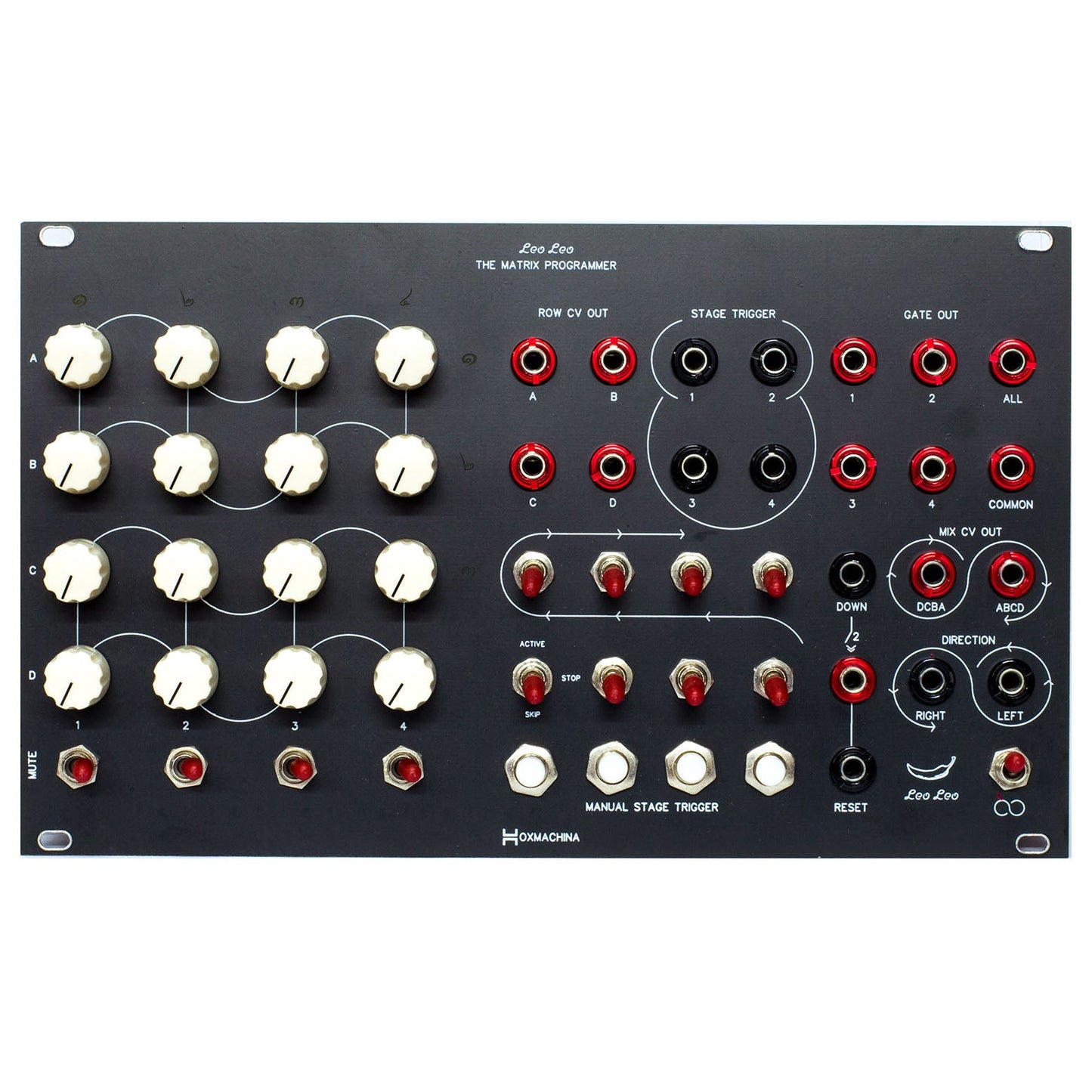

Analog matrix sequencer based on Serge's Programmer from the 70s, here added more complex functionality that can be used as 4x4 CV channels, 2x8 or even 2x16 CV channels, plus also the ability to cascade through the front panel switch to activate it (connects to another with a 10pin cable through the back panel), also adds total control over each stage in both directions (skip, stop, active and mute), operates under three different clock inputs: Left, Right and Down can be used from a precise sequencer to a generative and random mode as well with manual button triggers for each step.
** Please note, currently all Voxmachina modules are built to order. This can take up to two weeks **
