Voxmachina CHA CHA Voltage Controlled LFO DIY PCB Kit

Voxmachina CHA CHA Voltage Controlled LFO DIY PCB Kit

Regular price £23.00
Regular price Sale price £23.00
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 20mA
-12V : 20mA
+5V: 0mA

Size

Width: 6 HP
Height: 3 U
Depth: 330 mm

Brand:

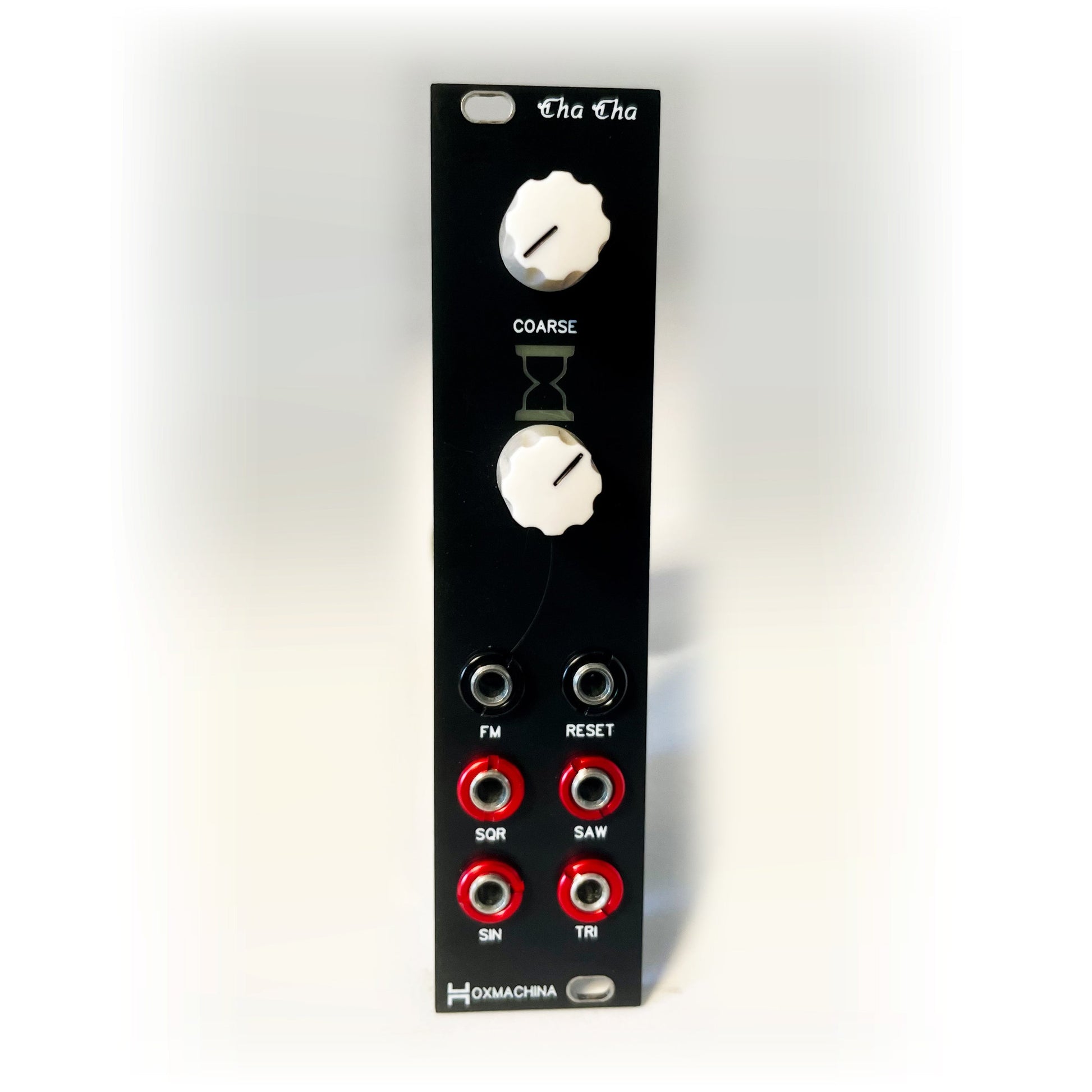

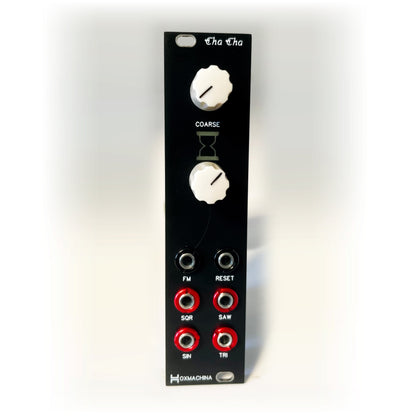

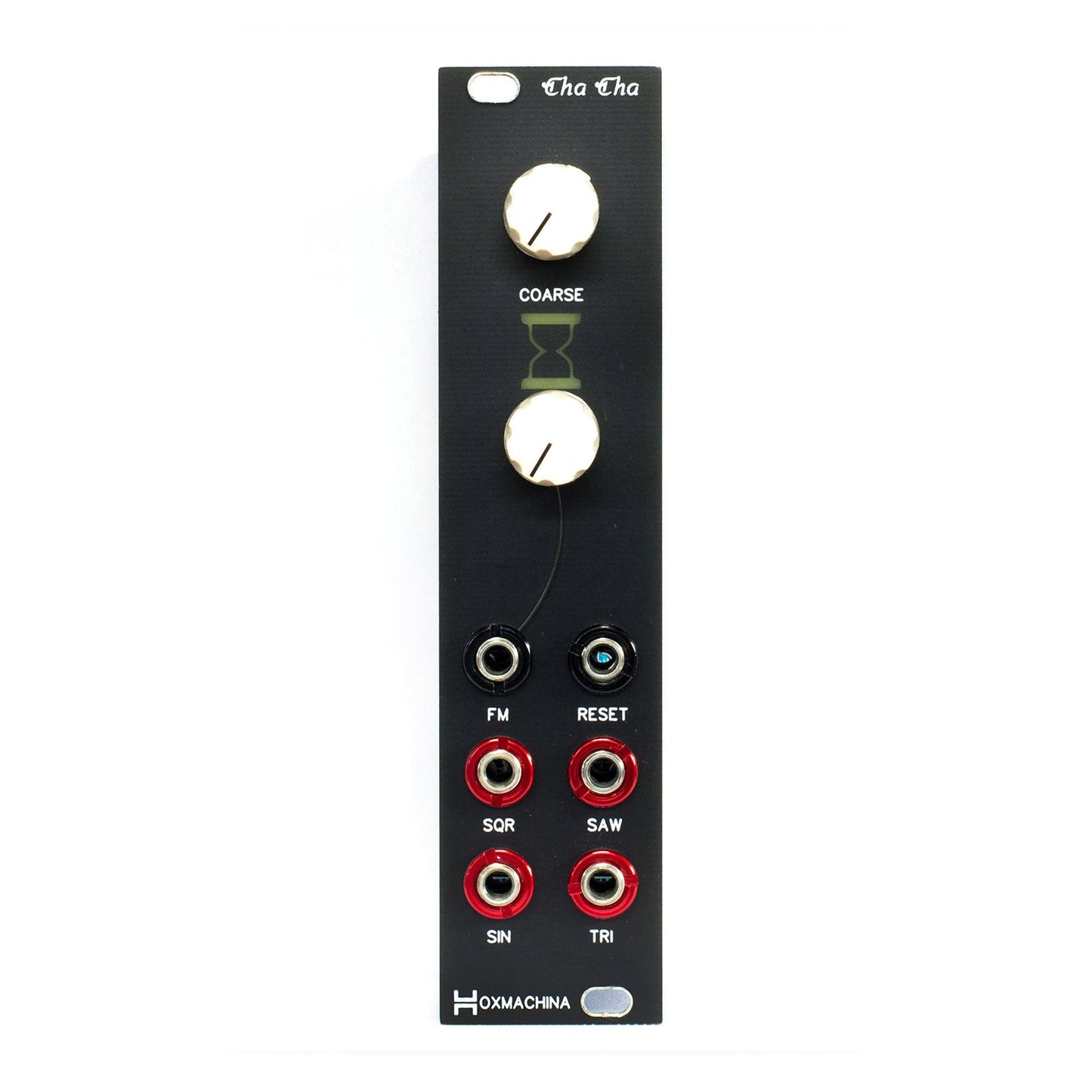

A long-awaited little great tool for every musical rack for sure, "Cha Cha" (means slow or slower in Thai) is a voltage-controlled LFO that you can build yourself. It has 4 different wave outputs (Sine, Triangle, Saw, and Square), also an FM input with an attenuator, and a RESET input to keep it in sync with another external source.


Building this module requires simple calibration of Saw and Sine waves, but nothing complicated to achieve; please check all videos in this module series if you're interested in more.

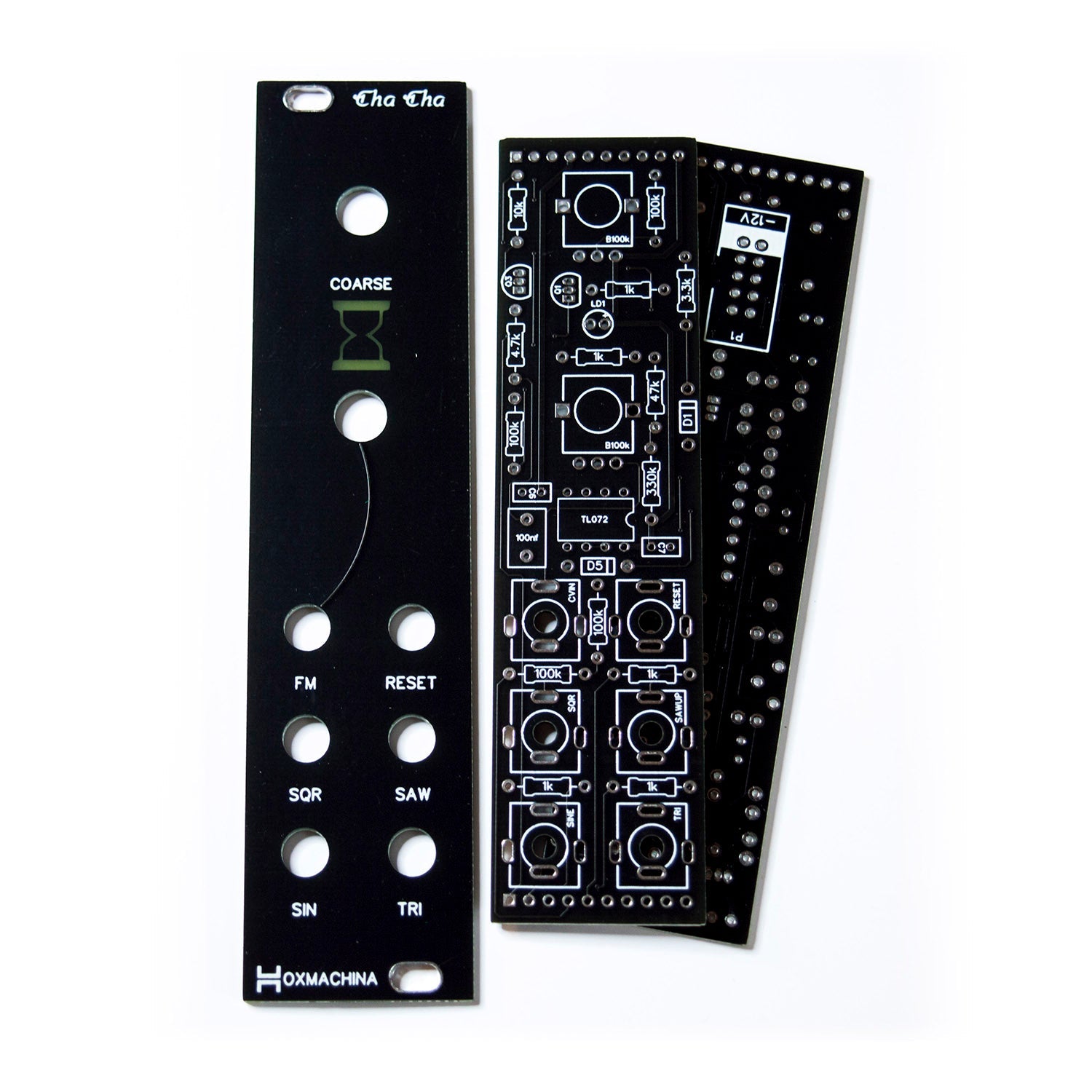

PCB KIT INCLUDES MAIN PCB + CONTROL PCB + FRONT PANEL.


All files including BOM and build instructions at Voxmachina's Github
