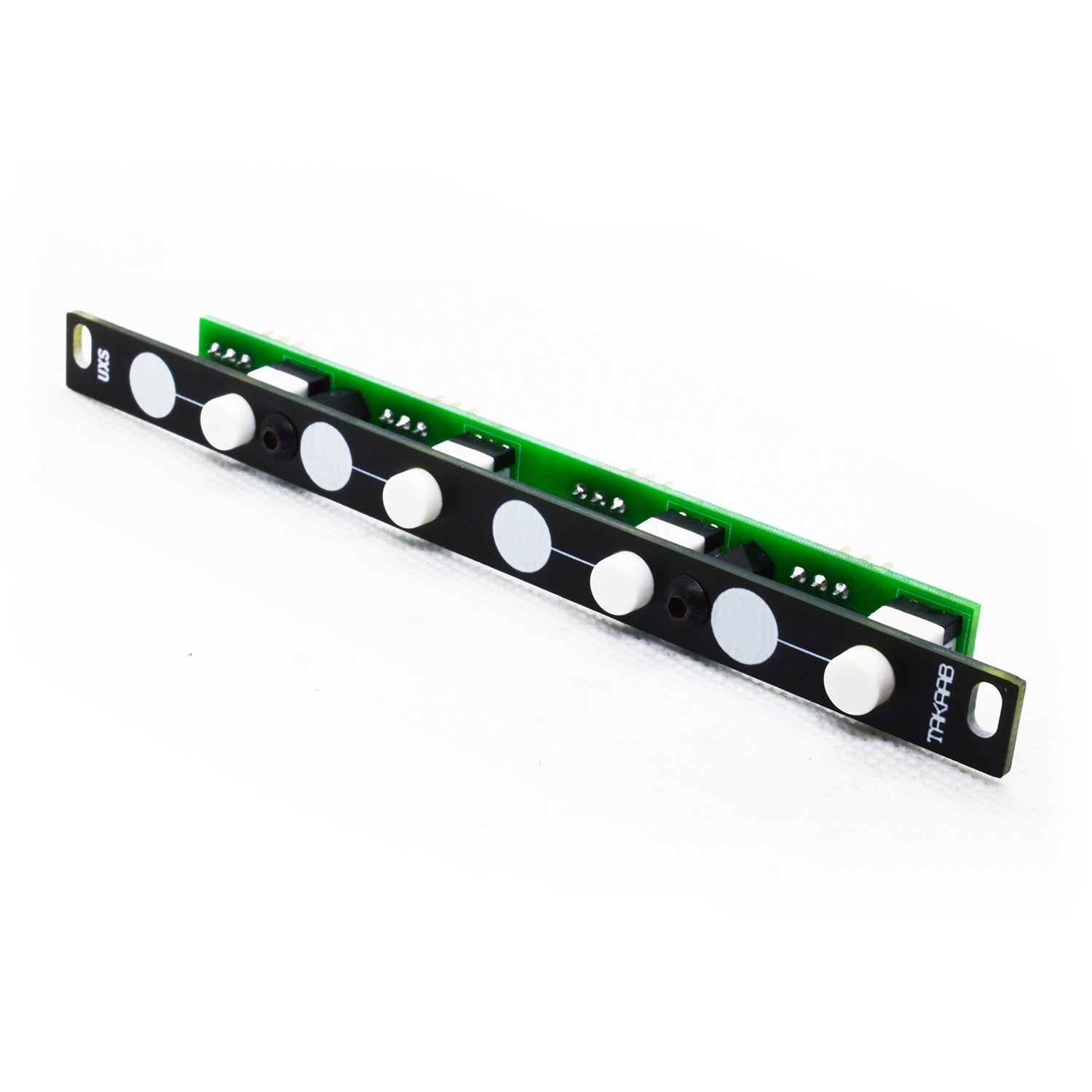

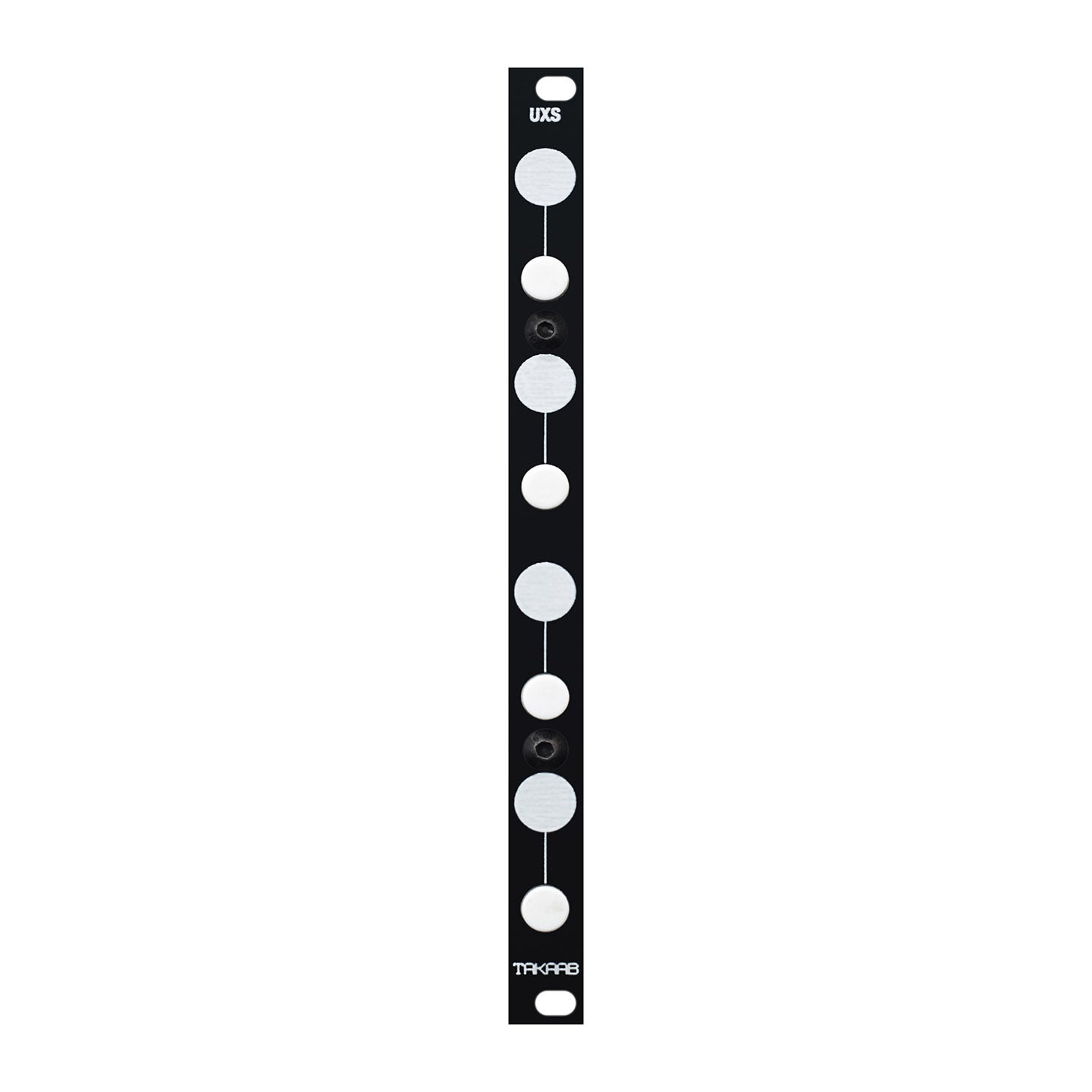

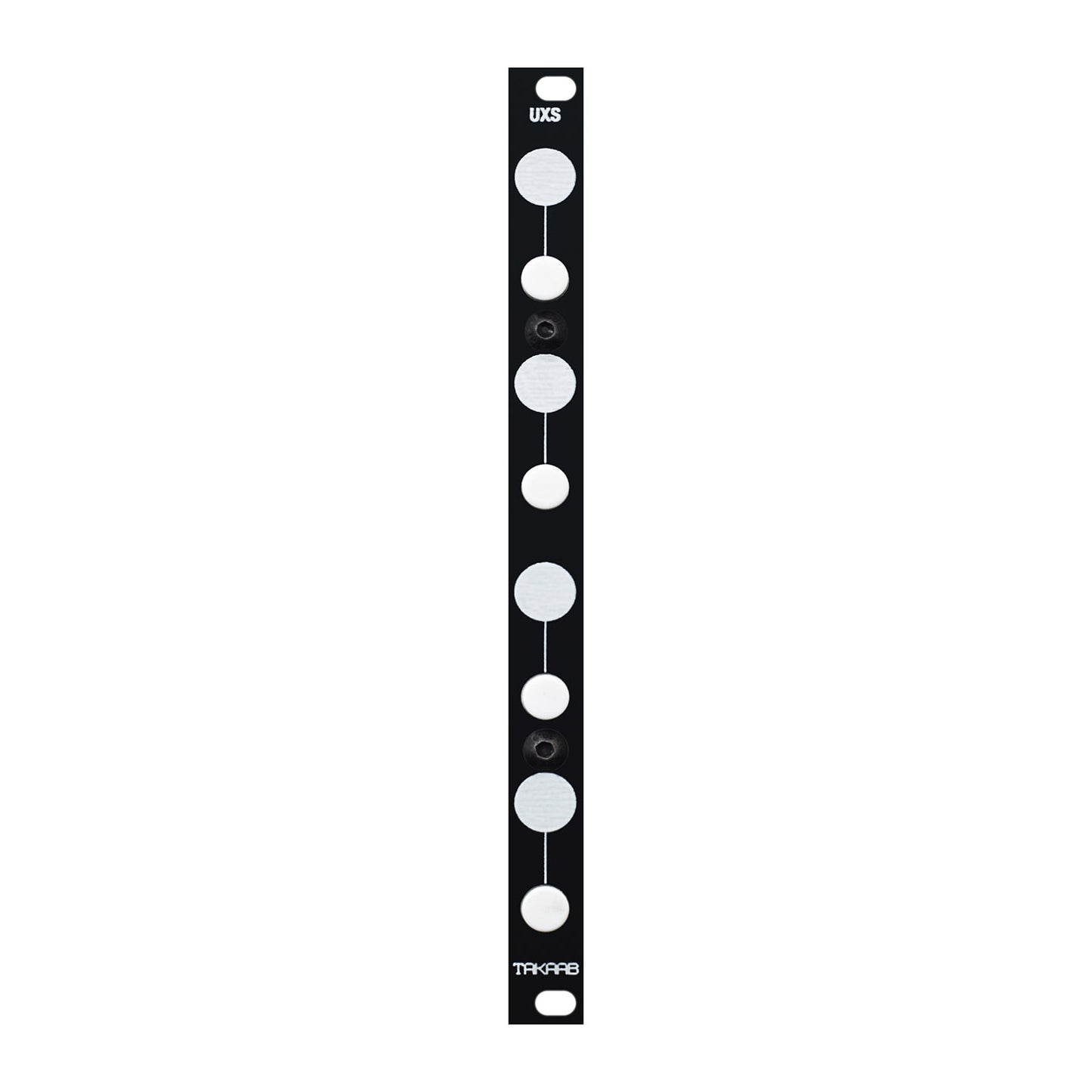

Takaab UXS - Universal Expander Switches

Takaab UXS - Universal Expander Switches

Regular price £12.00
Regular price Sale price £12.00
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 0mA
-12V : 0mA
+5V: 0mA

Size

Width: 2 HP
Height: 3 U
Depth: 30 mm

Brand: Takaab by Siam Modular

Unlock the hidden function of your modules.... Many eurorack modules including several in the Takaab range include on-board jumpable headers that allow the user to toggle function either with a jumper or a dedicated expander module. Takaab UXS lets you bring some of these options to your front panel.

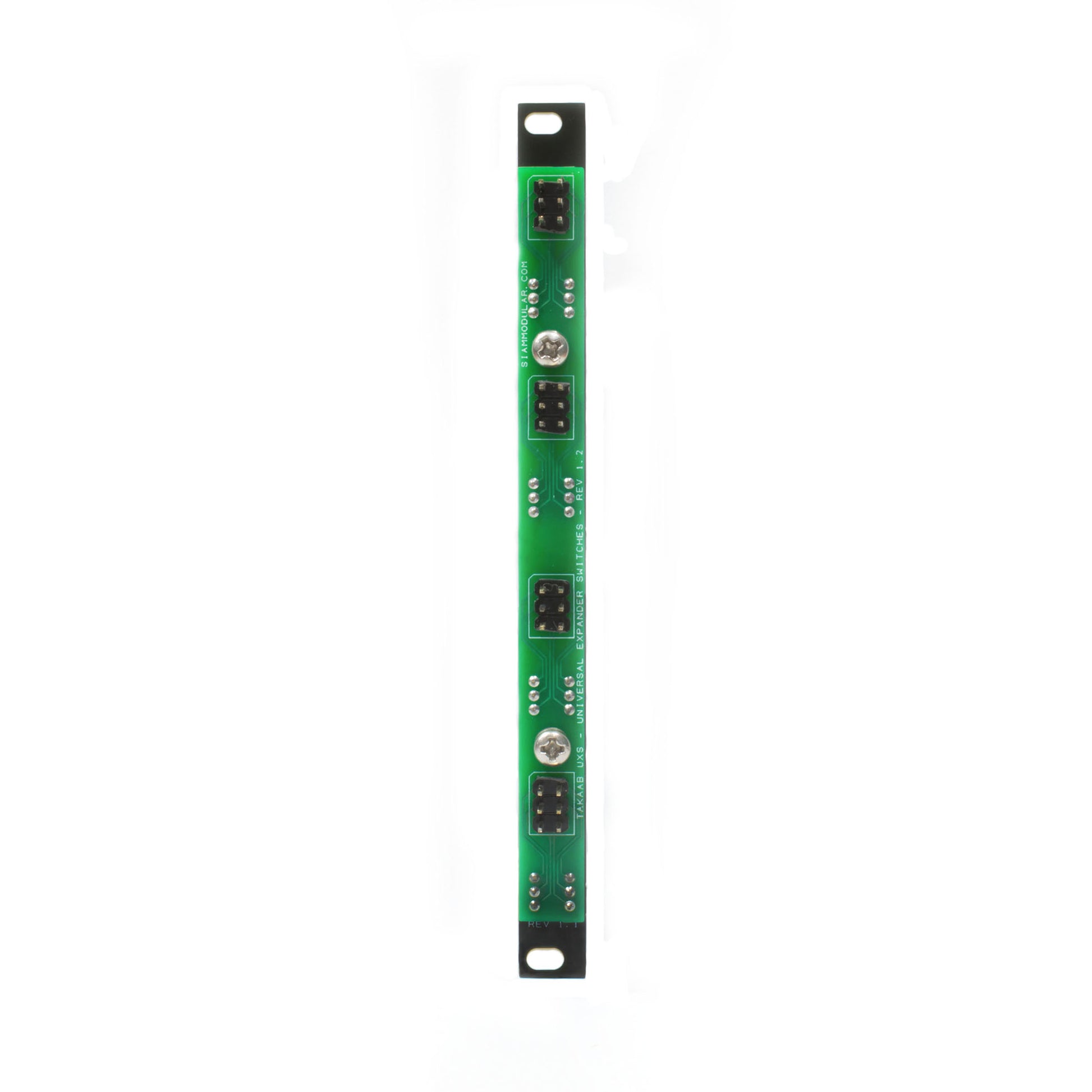

The module includes 4x DPDT push-switches connected to 2.54mm pitch male pin headers on the back of the unit. In the box are 4x 3pin and 4x 2pin female jumper cables that can be used to connect the UXSs switches to the headers on your modules.

Please make sure you know what you are doing before you do it! Only use with connections that are explicitly meant to be jumped by the user. Check your module's instructions and if in doubt check with the manufacturer.
