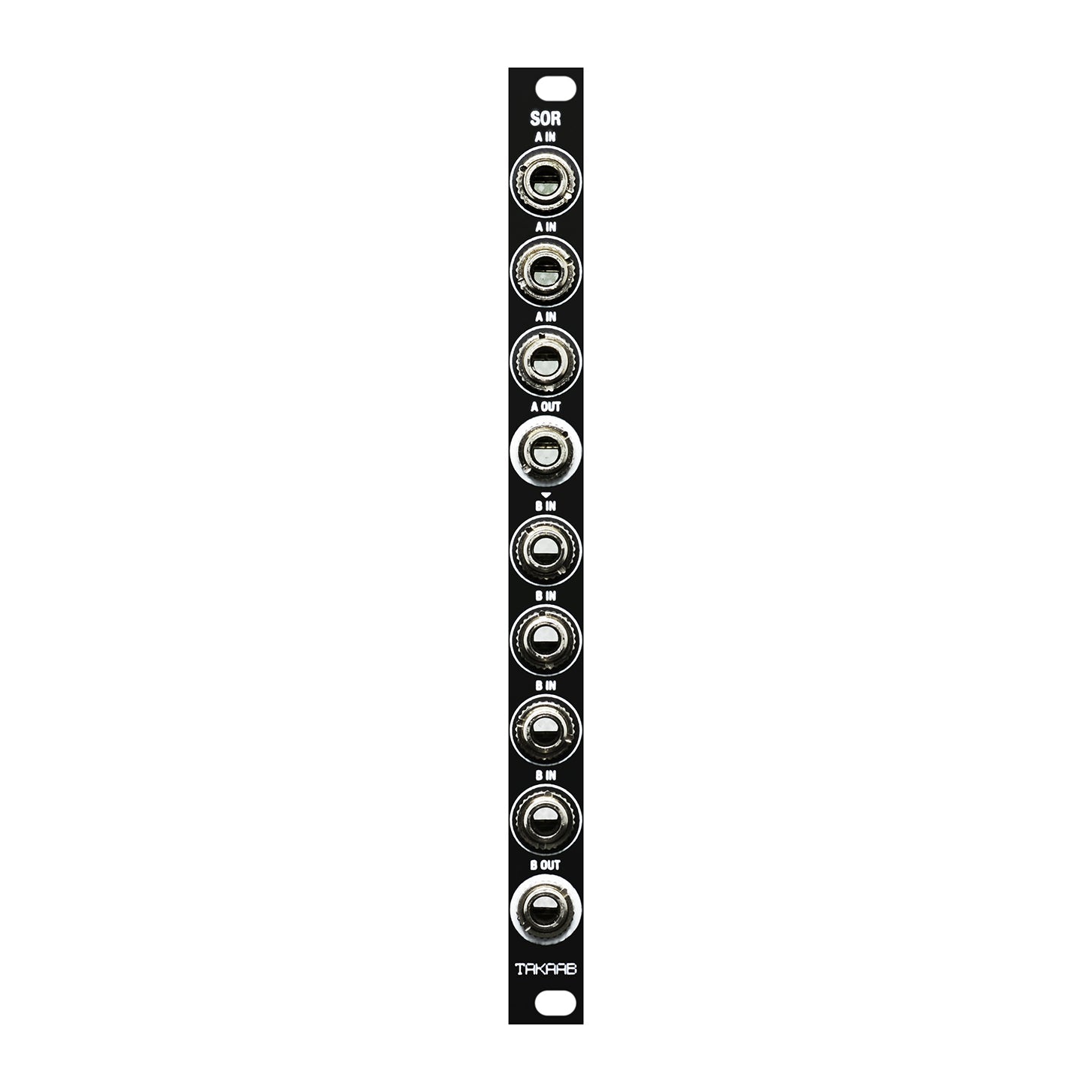

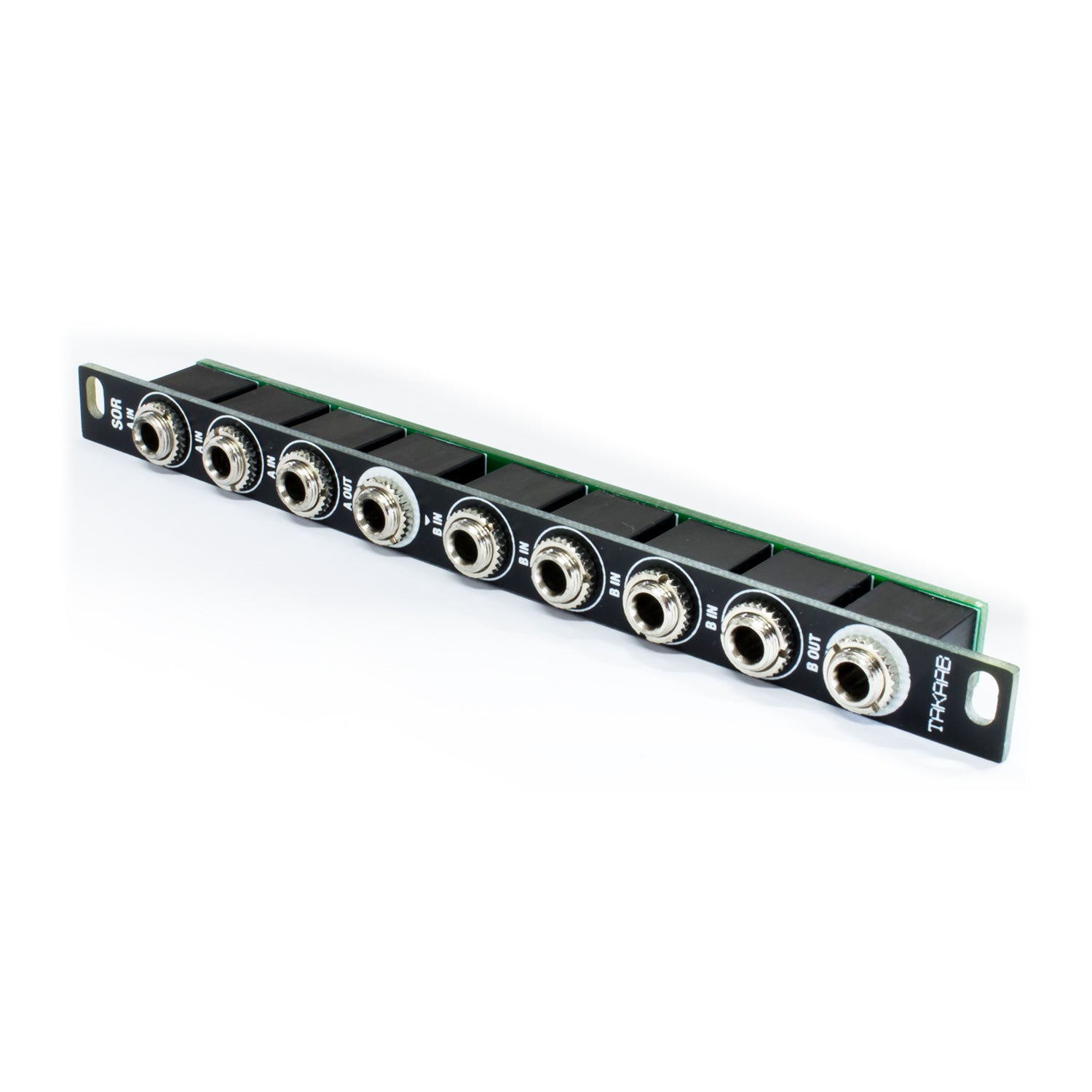

Takaab SOR Dual Switched Passive Logic OR Gate

Takaab SOR Dual Switched Passive Logic OR Gate

Regular price £16.43
Regular price Sale price £16.43
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 0mA
-12V : 0mA
+5V: 0mA

Size

Width: 2 HP
Height: 3 U
Depth: 14 mm

Brand: Takaab by Siam Modular

A simple logic OR gate for use combining clock and/or gate signals. The signal path is normalised to act as a single 7-input gate or two separate gates with 3 inputs and 4 inputs. As it is passive there is a small voltage drop of 0.7V.


Size: 1cm (2HP) x 128.5cm x 1.8cm.


Module depth: 1.4cm.


Package contents: 1x module, 2x M3 screws.
