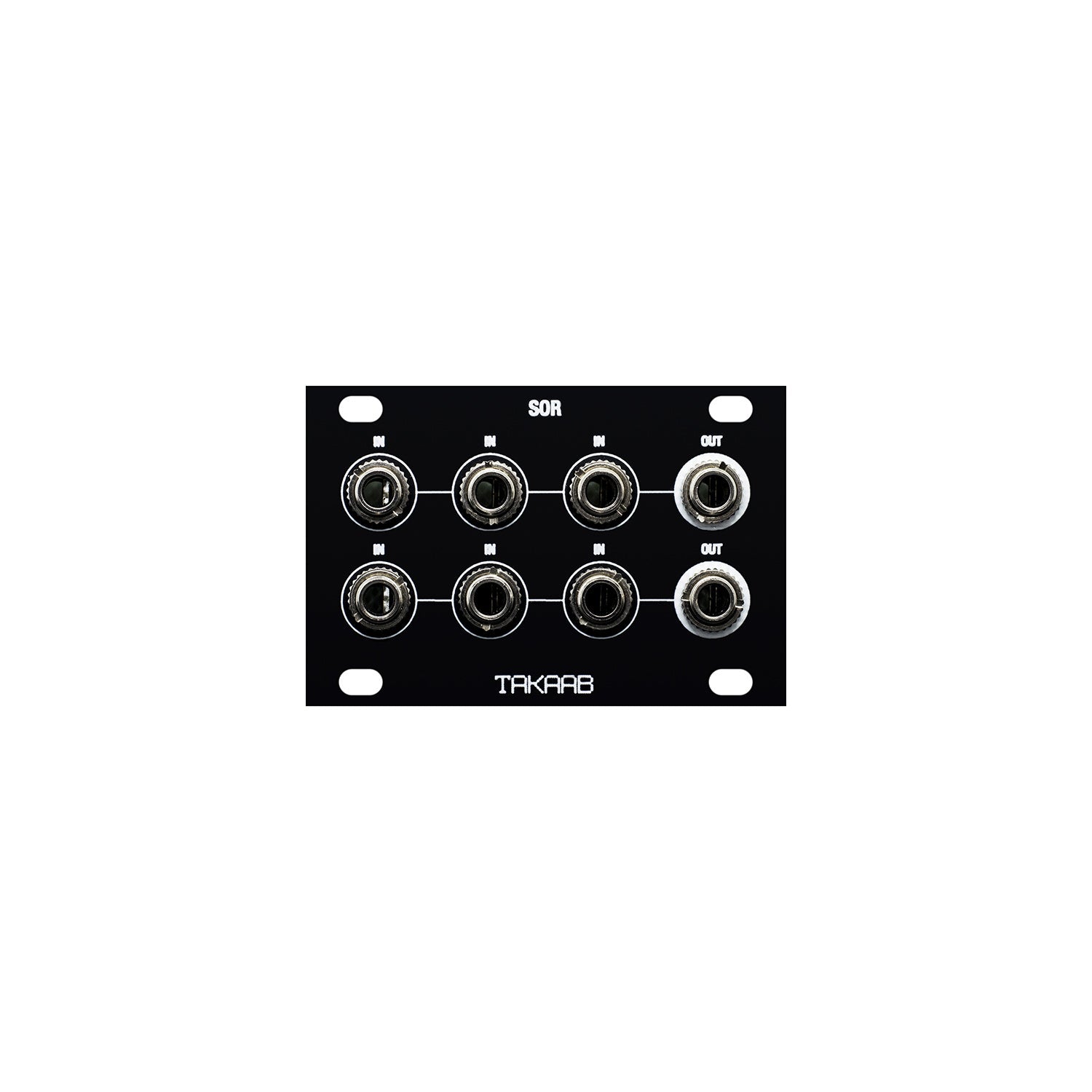

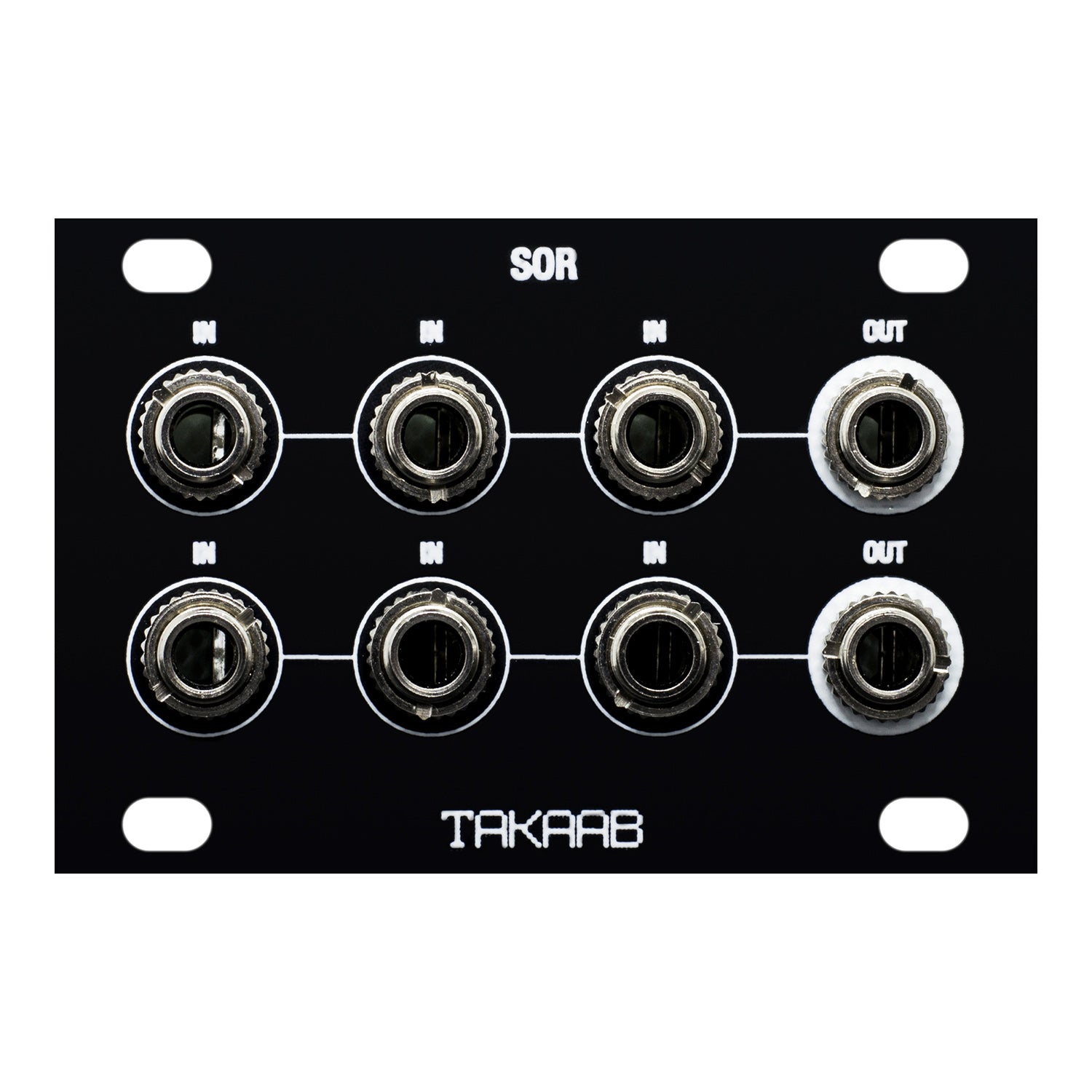

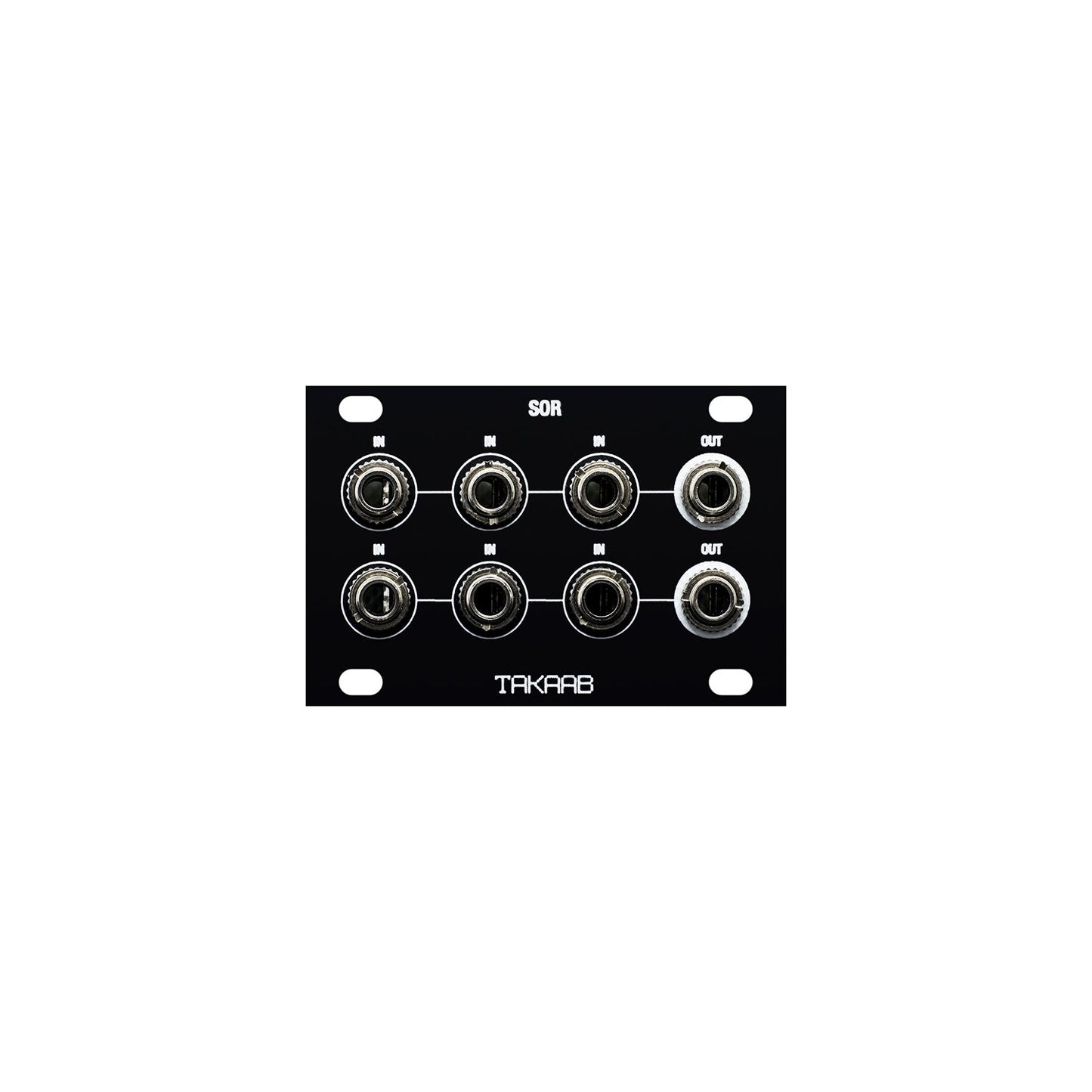

Takaab SOR-1U Dual Switched Passive Logic OR Gate

Takaab SOR-1U Dual Switched Passive Logic OR Gate

Regular price £17.12
Regular price Sale price £17.12
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 0mA
-12V : 0mA
+5V: 0mA

Size

Width: 12 HP
Height: 1 U
Depth: 14 mm

Brand: Takaab by Siam Modular

A simple logic OR gate for use combining clock and/or gate signals. The signal path is normalised to act as a single 6-input gate or two separate gates with 3 inputs. As it is passive there is a small voltage drop.


Intellijel format 1U tile


Size: (1U x 12HP) 60.9mm x 39.6mm x 18mm.
Module depth: 1.4cm.


Package contents: 1x module, 4x M3 screws.
