Takaab OCD + ECD Clock Divider Bundle
Takaab OCD + ECD Clock Divider Bundle
Couldn't load pickup availability
Specifications
Specifications
Current Draw
+12V : 40mA
-12V : 16mA
+5V: 0mA
Size
Width: 4 HP
Height: 3 U
Depth:
Brand: Takaab by Siam Modular
Both of our clock dividers together at 10% off. That's 480THB off the usual price for both.
These are two clock dividers that play well together. One with even (squared) divisions, the other with mostly odd, less common divisions. A header on each board allows the user to connect the reset signal from the button of the OCD to reset an adjacent ECD unit. There are also headers on the boards that allow for normalizing the RESET and CLOCK IN jacks of the adjacent clock dividers. Connection requires 2-pin 2.54mm pitch female-female Dupont-style jumper cables included with the units.
![TAKAAB OCD - Odd Clock Divider - Top angled view](http://siammodular.com/cdn/shop/files/Takaab_OCD_-_Top_angled_view.jpg?v=1723091766&width=1445)

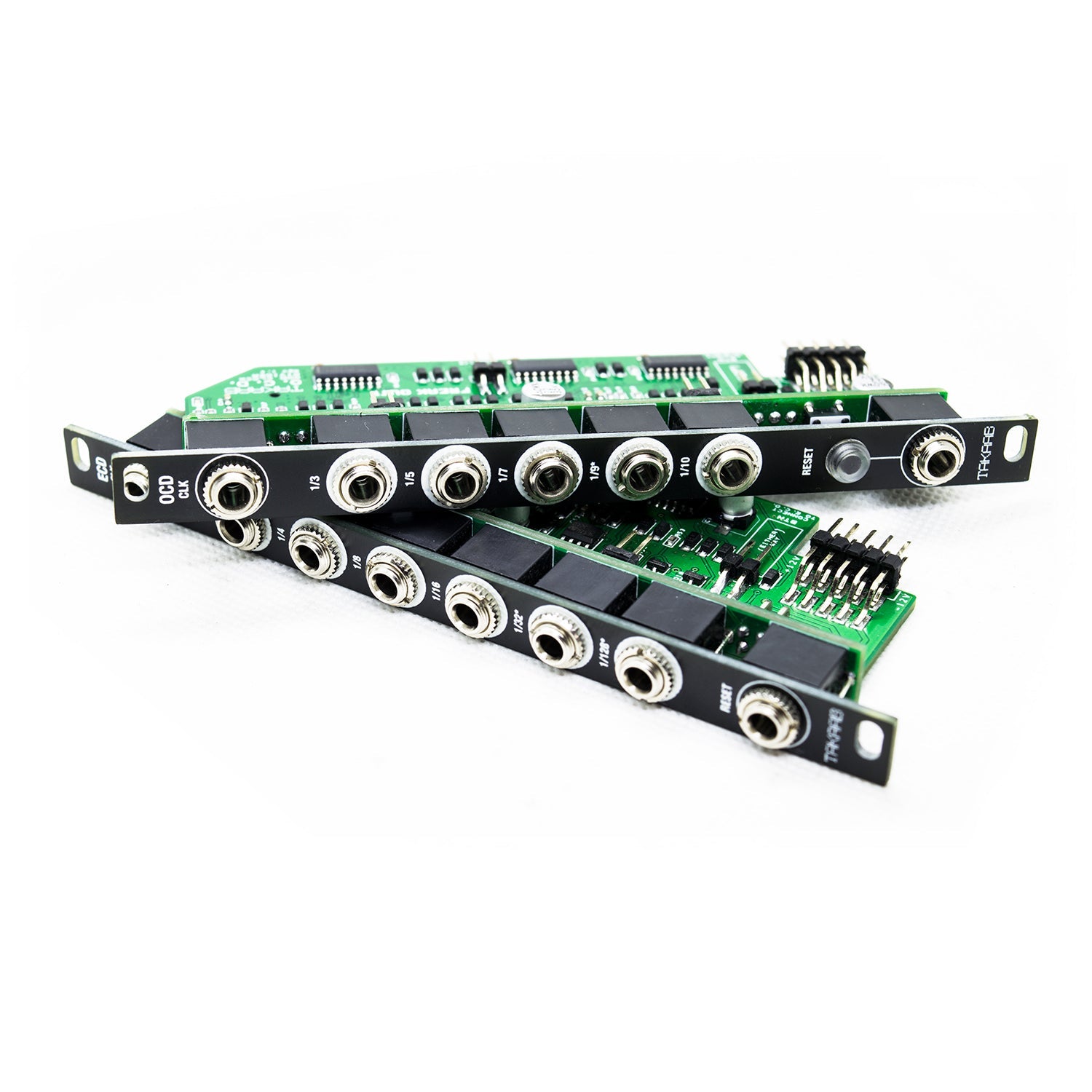

![Takaab OCD + ECD Clock Divider Bundle - Up side view](http://siammodular.com/cdn/shop/files/Takaab_OCD_ECD_-_Up_side_view.jpg?v=1722931632&width=1445)

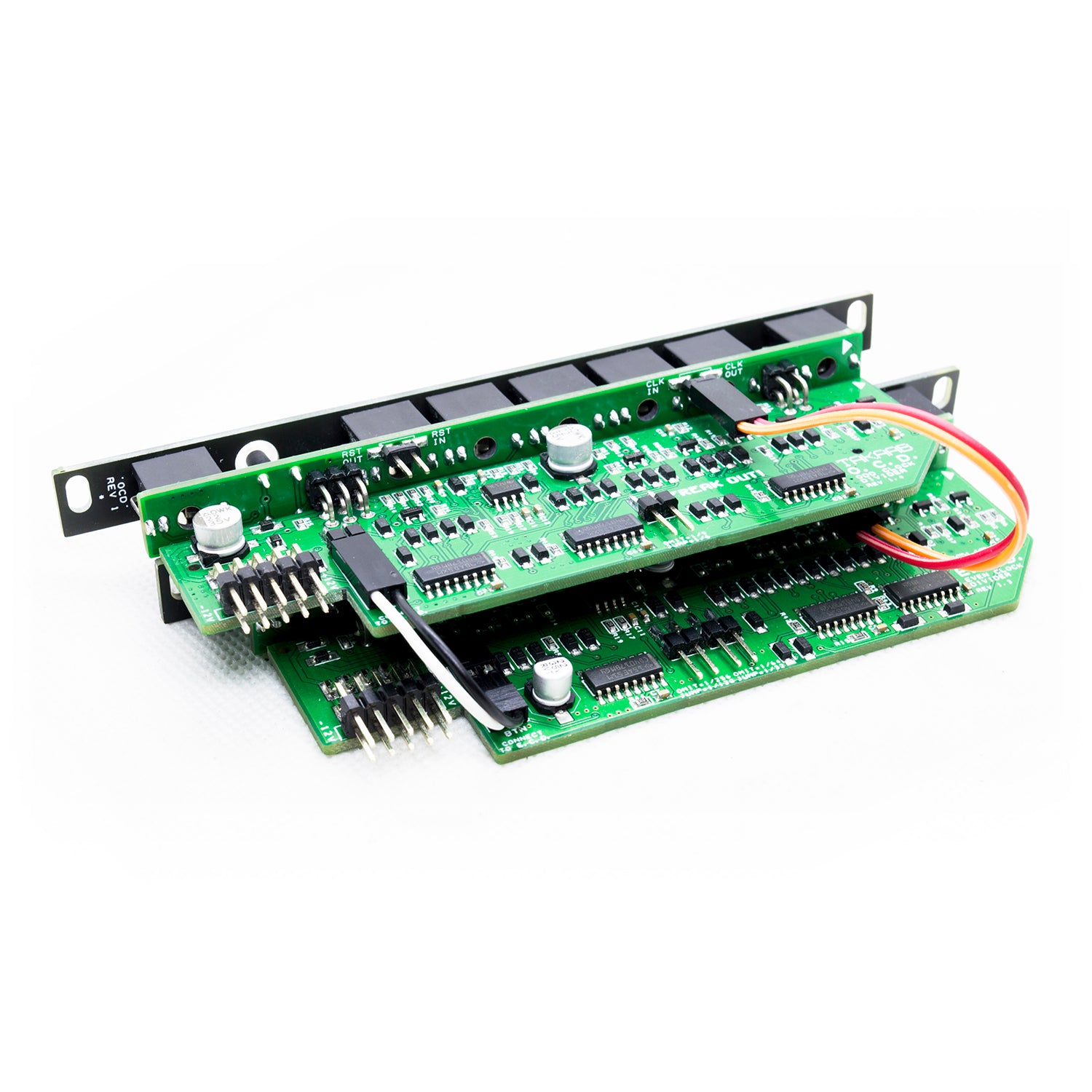

![Takaab OCD + ECD Clock Divider Bundle - Back view](http://siammodular.com/cdn/shop/files/Takaab_OCD_ECD_-_Back_view.jpg?v=1722931577&width=1445)

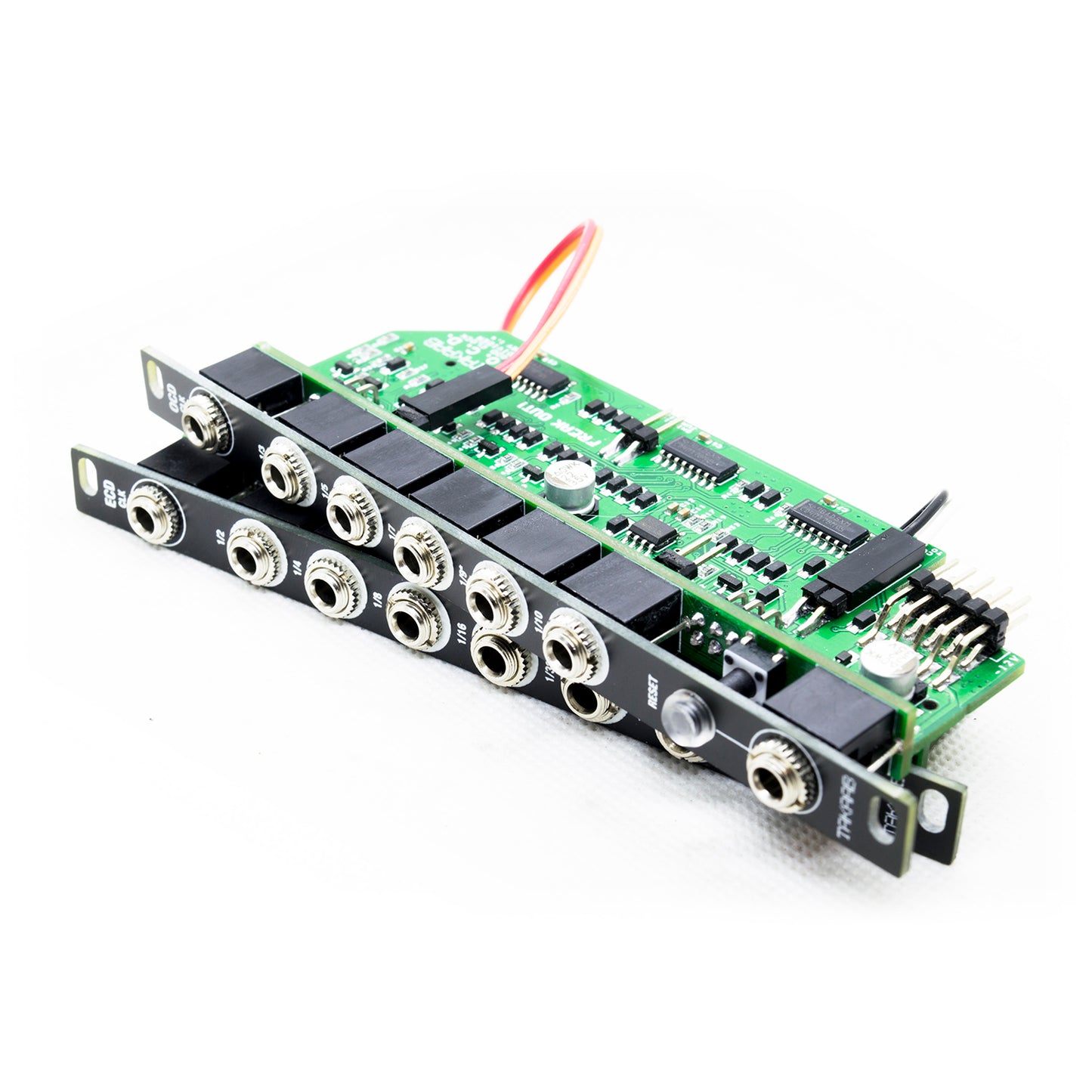

![Takaab OCD + ECD Clock Divider Bundle - Side view](http://siammodular.com/cdn/shop/files/Takaab_OCD_ECD_-_Side_view.jpg?v=1722931689&width=1445)

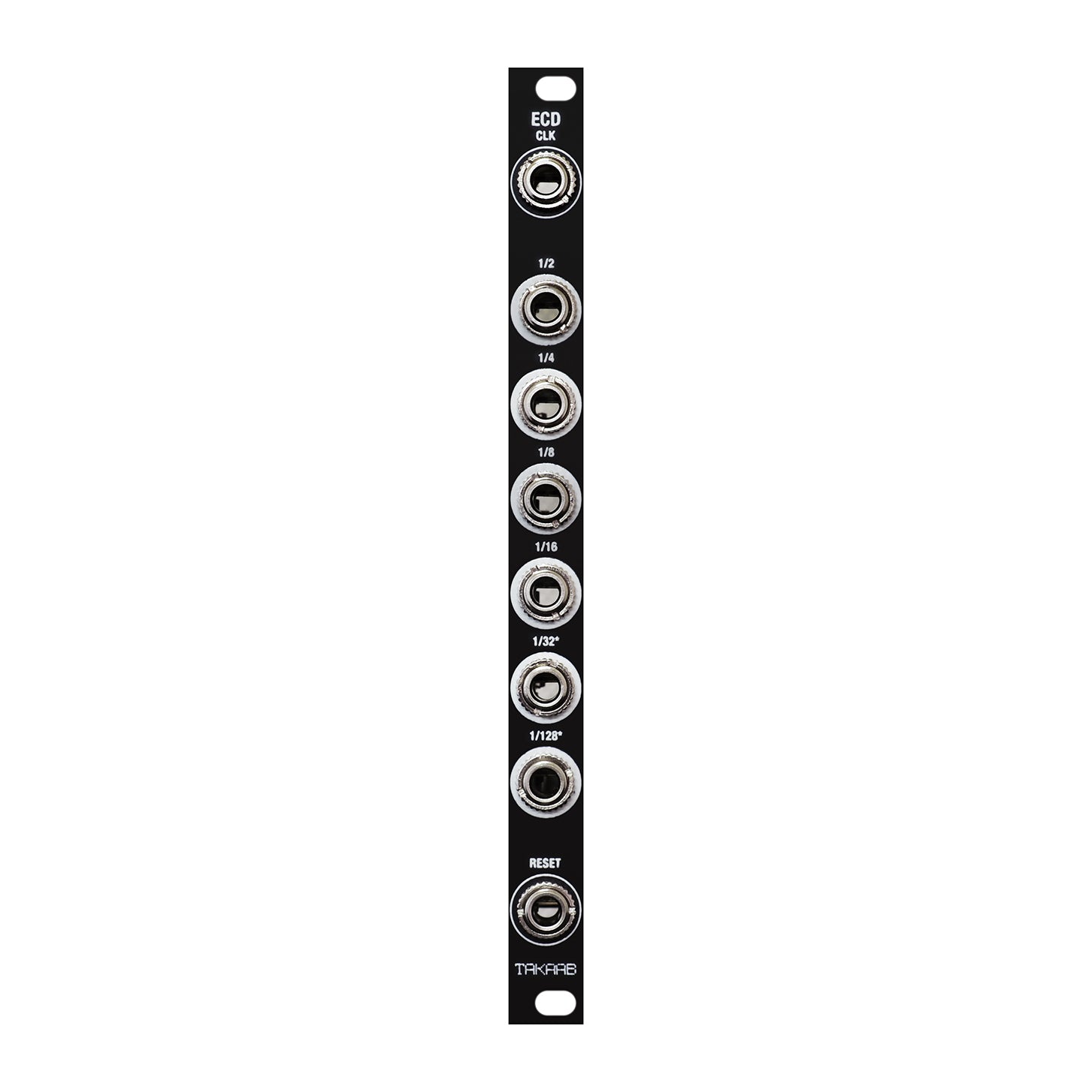

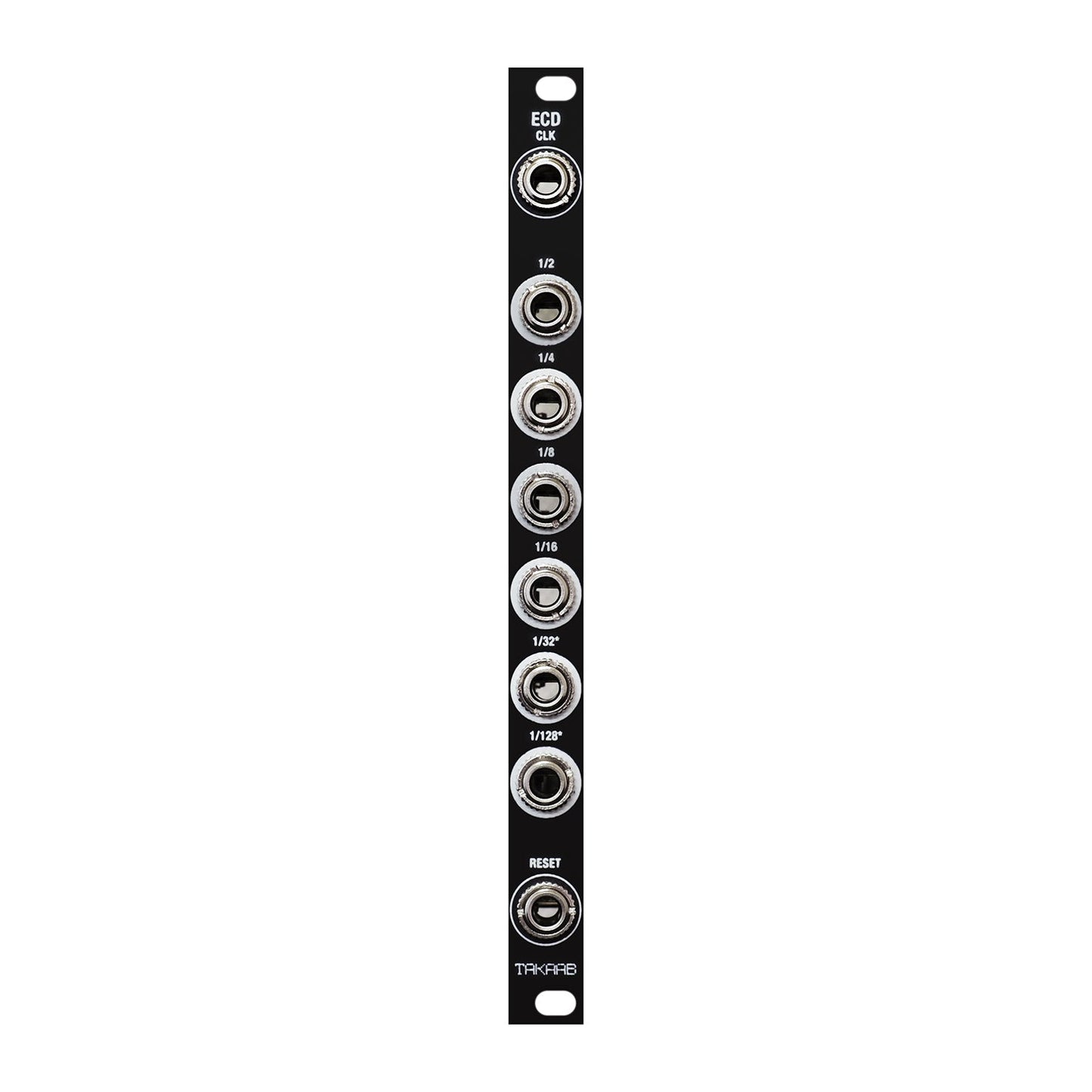

![Takaab OCD + ECD Clock Divider Bundle](http://siammodular.com/cdn/shop/files/Takaab_OCD_ECD_-_ECD_Front_panel_view_2b917d0d-5096-45ff-8055-313fe065340d.jpg?v=1725435870&width=1445)

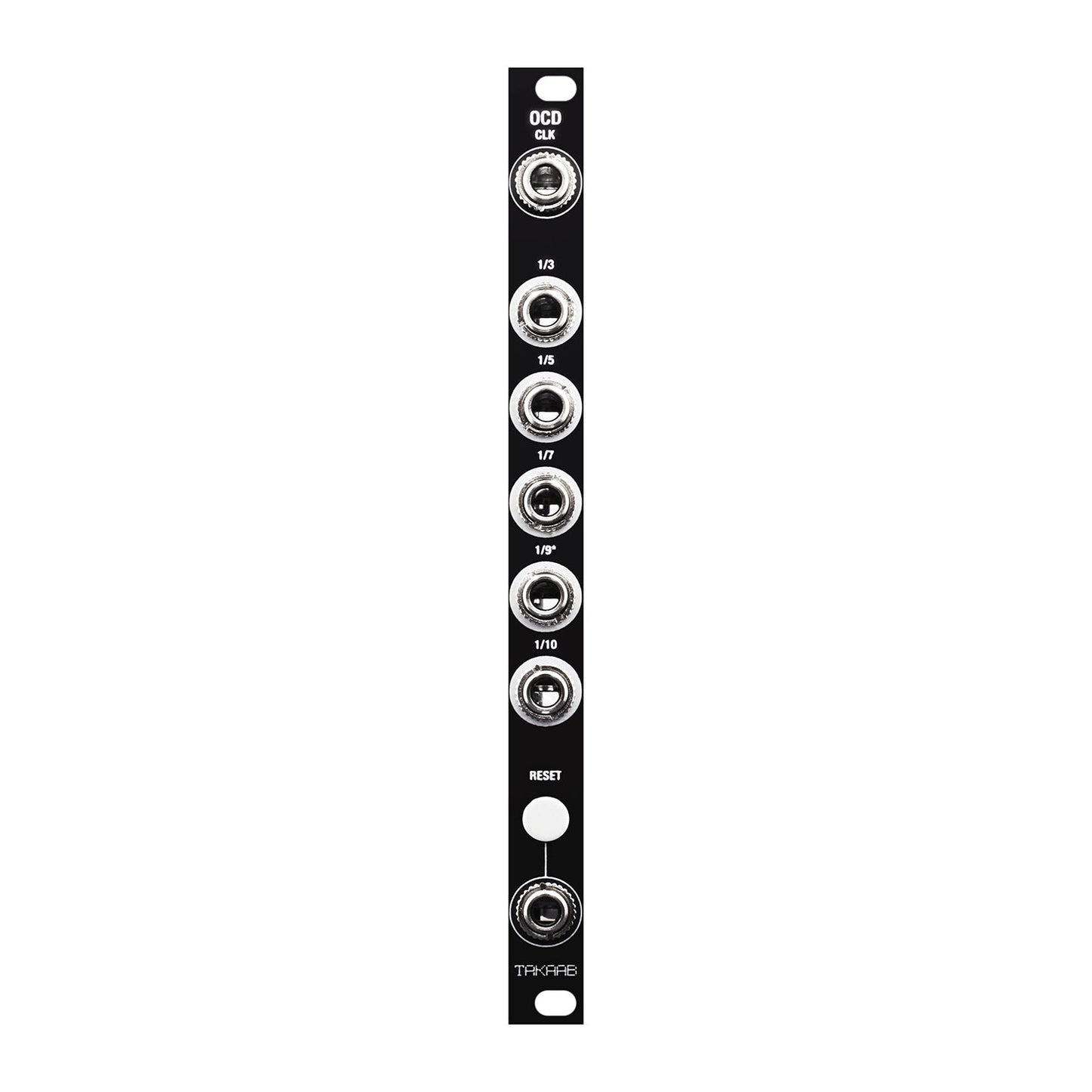

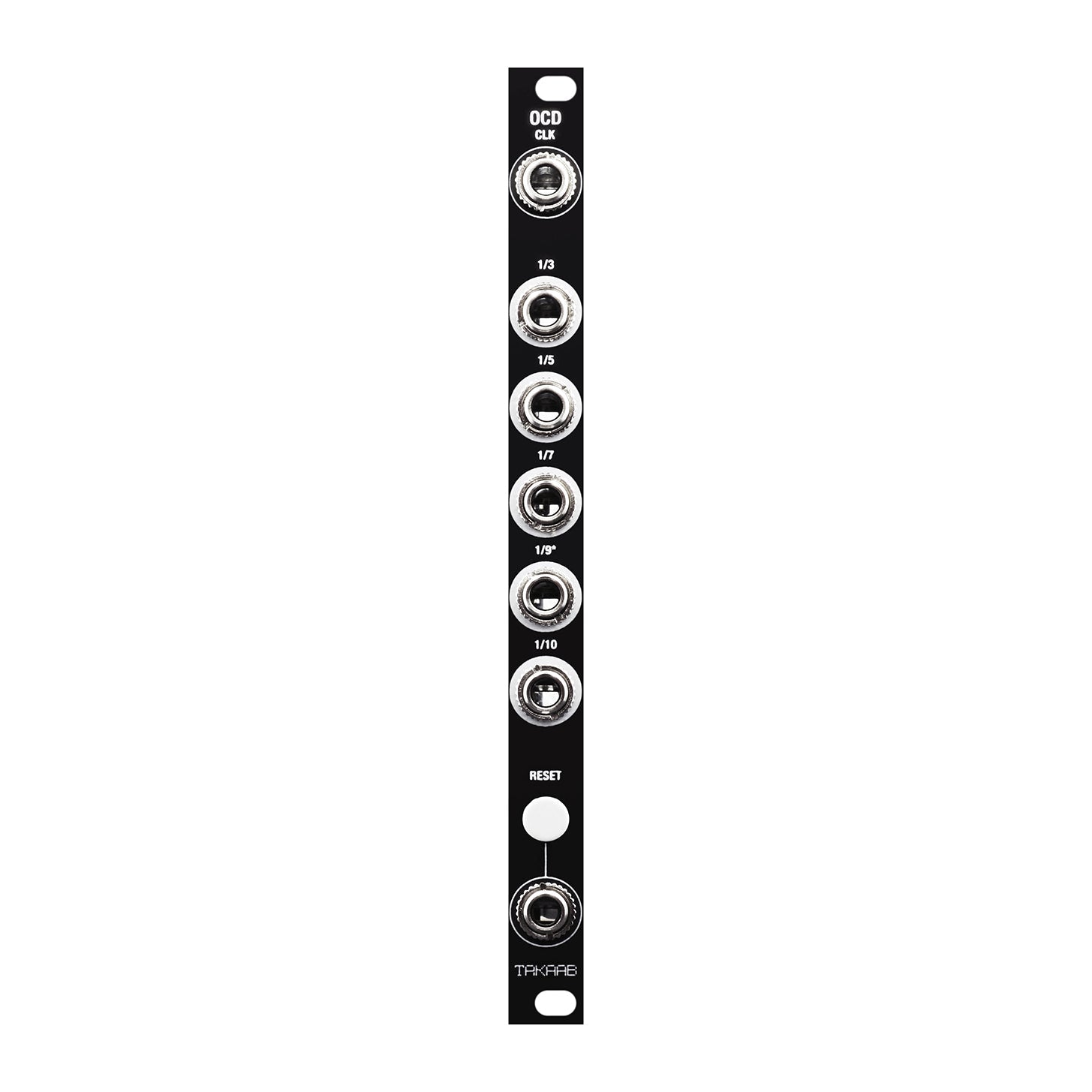

![Takaab OCD + ECD Clock Divider Bundle](http://siammodular.com/cdn/shop/files/Takaab_OCD_ECD_-_OCD_Front_panel_view_50db9b45-a58d-4e5e-beed-25dc6770d33e.jpg?v=1725438441&width=1445)
