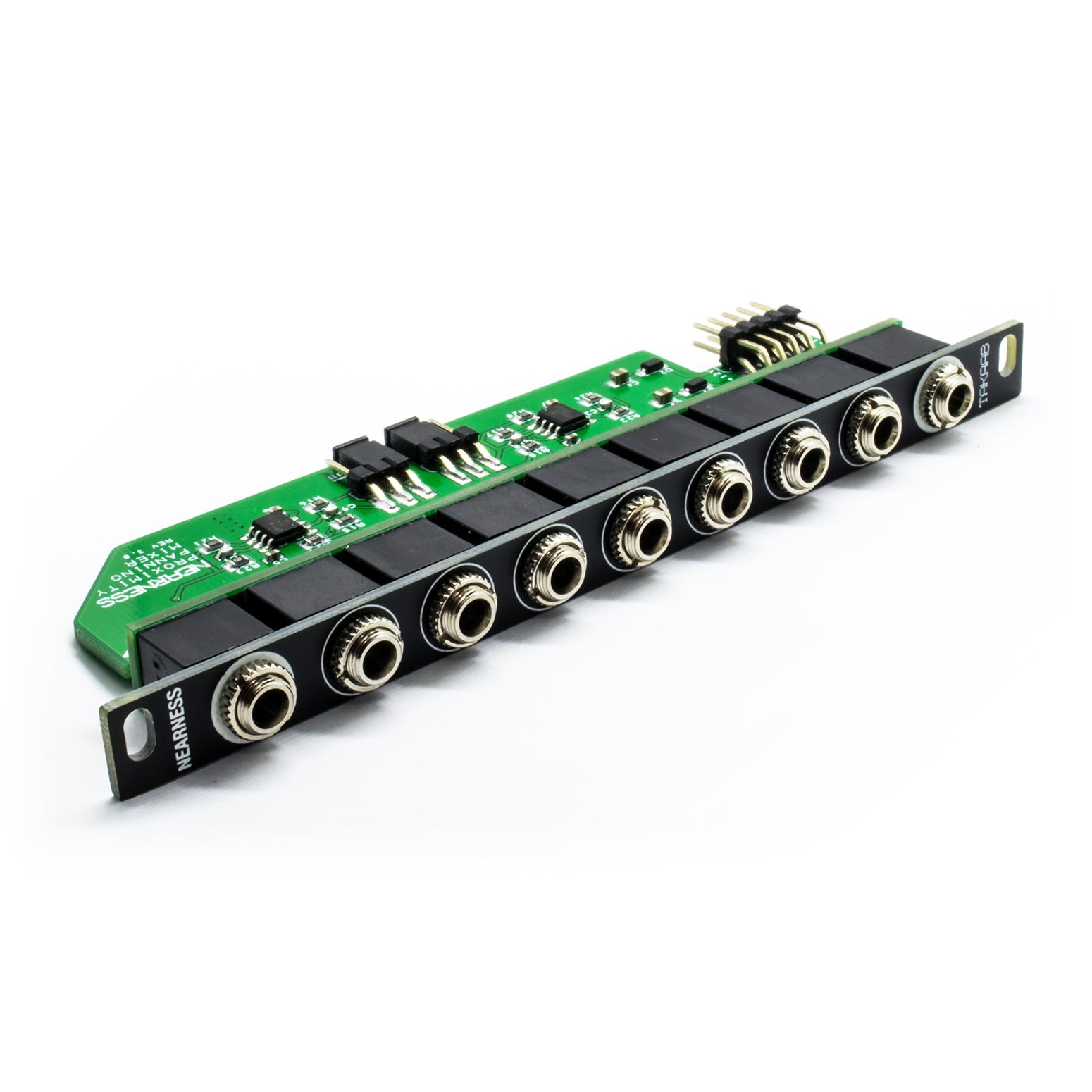

Takaab Nearness v3 Minimal Proximity Panning Mixer

Takaab Nearness v3 Minimal Proximity Panning Mixer

Regular price £43.00
Regular price Sale price £43.00
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 25mA
-12V : 25mA
+5V: 0mA

Size

Width: 2 HP
Height: 3 U
Depth: 36 mm

Brand: Takaab by Siam Modular

Nearness is a minimal mixer module for spacing out your sounds in the stereo field. Version 3 is exactly the same circuit as v2, but now it's 2HP.

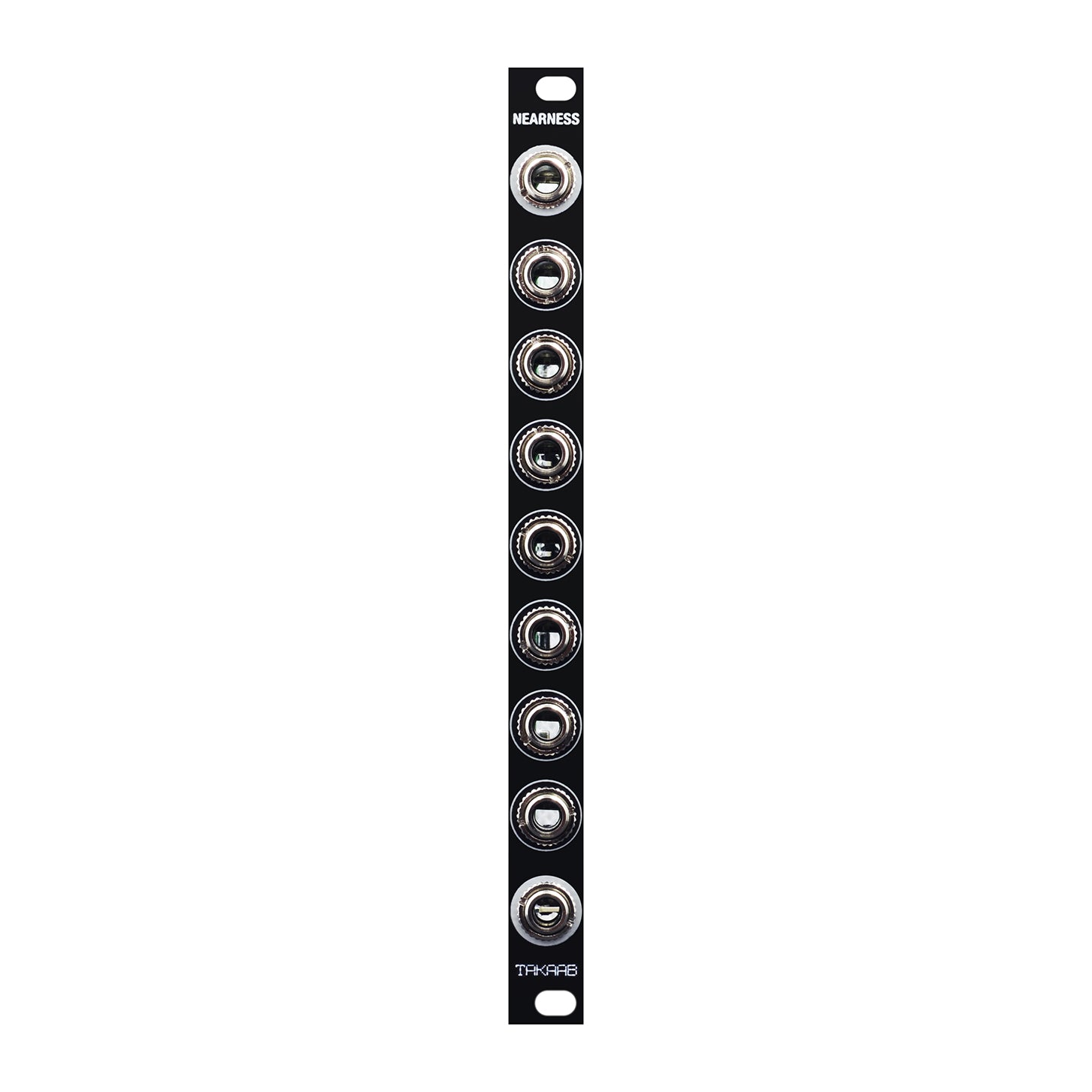

The left and right outputs of Nearness are at the top and bottom. The 7 jacks between these are all mono inputs. Each input has a different pan ratio depending on how close to an output it is, meaning the centre input is panned 50:50 to each output, other inputs are panned progressively harder to the output they are closer to, until the inputs adjacent to outputs are panned almost completely to that output.

The level for each output can be switched with a jumper between 1:1 amplification (for use inside the eurorack system) or -6db line level (in case you use Nearness as the output module of your system).
Size: 1cm (2HP) x 128.5cm x 4.1cm.

Module depth: 36mm (distance from behind faceplate to end of pcb/power connector).
7 preset-panned inputs, 2 outputs.
Requires +/-12v standard eurorack power supply.
Package contents: 1x stereo mixer module, 1x 16 pin power cable, 2x M3 screws.

This module was designed by Sarnesjo and released under Creative Commons licence. Constructed by Siam Modular. If you prefer to print your own boards and build one yourself, all files are available at: https://github.com/sarnesjo/nearness
(3HP conversion panels are available on request.)
