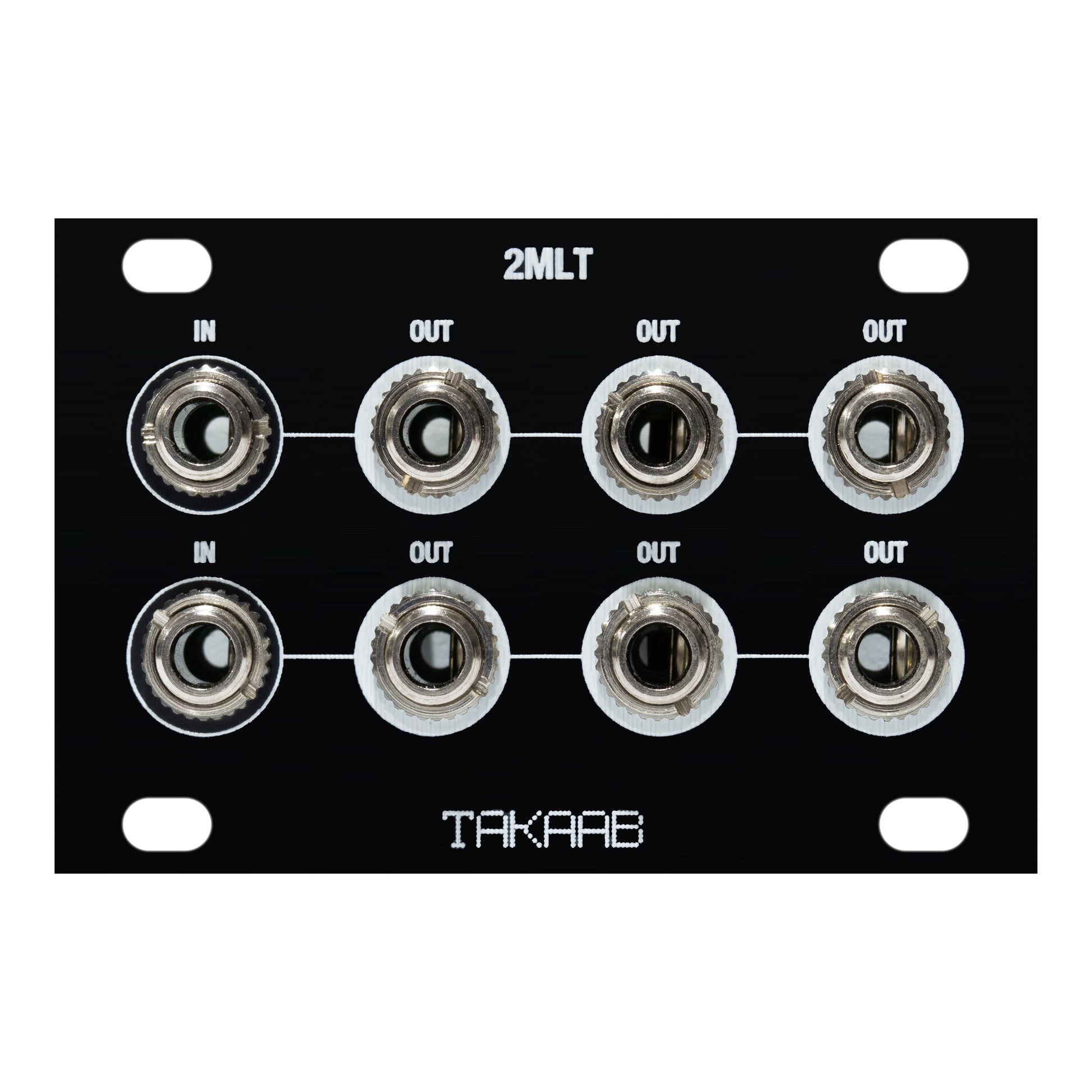

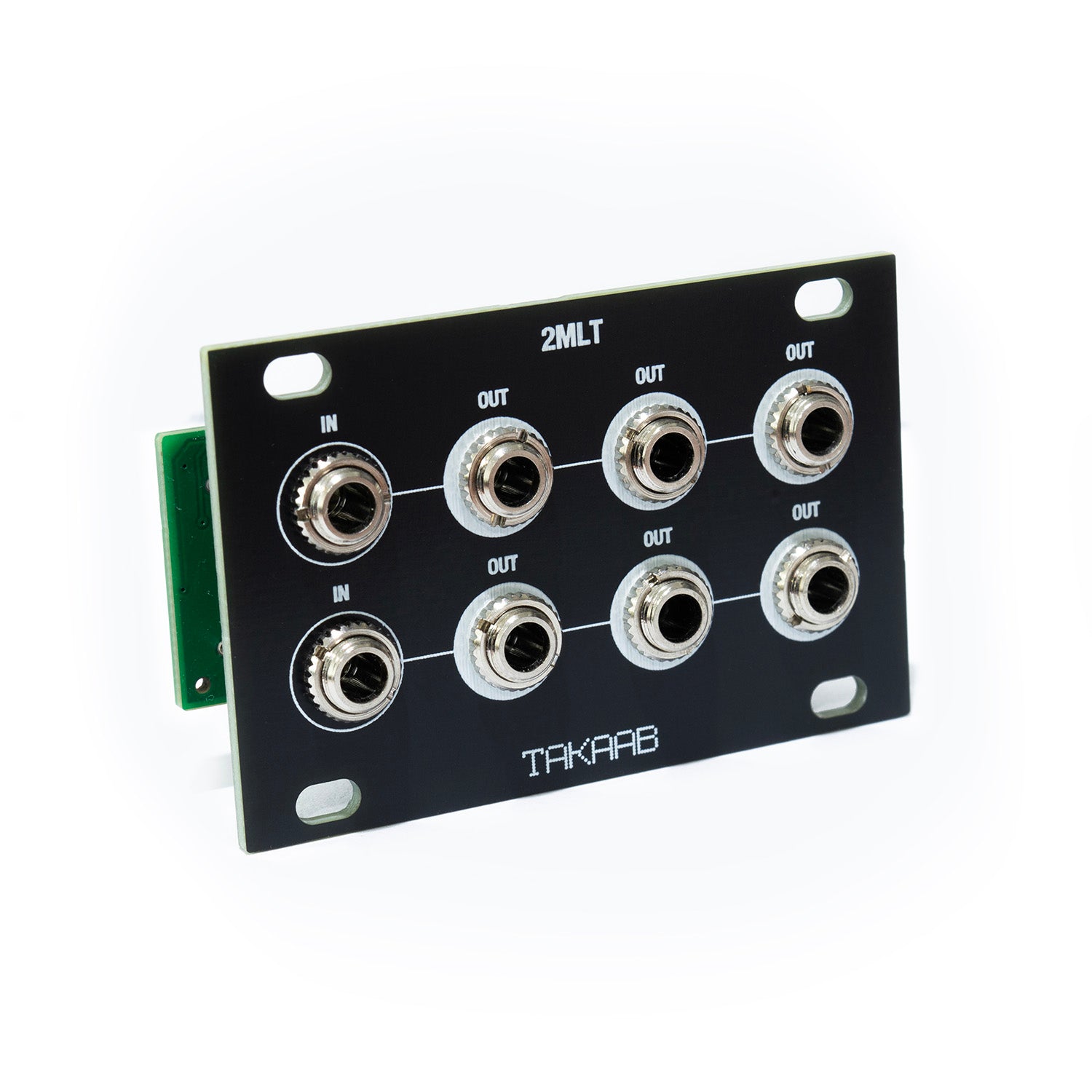

Takaab 2MLT-1U - Dual Buffered Multiple Eurorack Synthesizer Module

Takaab 2MLT-1U - Dual Buffered Multiple Eurorack Synthesizer Module

Regular price £52.87
Regular price Sale price £52.87
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 20mA
-12V : 20mA
+5V: 0mA

Size

Width: 12 HP
Height: 1 U
Depth: 30 mm

Brand: Takaab by Siam Modular

Precise and compact 1U*12HP multiple, based on a pair of low-offset, high quality audio op amps.

Two individual "1 in 3 out" buffered signal splitters. Use whenever you need to split a signal without any voltage or level drop, for instance to route a 1v/octave CV to three oscillators. Each of the inputs connects to three outputs at the same level.

The signal of gate 1 can be normalized to the input of gate 2, meaning that without a jack inserted into the second input the unit will function as a 1 in 6 out multiple. To do this use a jumper to connect AIN* to BNORM. (This should be placed by default before it leaves our factory).

*Erratum: On version 1.0 jumper pin AIN is wrongly labelled as BIN.
