Voxmachina LEO LEO Matrix Sequencer DIY PCB Kit

Voxmachina LEO LEO Matrix Sequencer DIY PCB Kit

Regular price £53.16
Regular price Sale price £53.16
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 35mA
-12V : 20mA
+5V: 0mA

Size

Width: 42 HP
Height: 3 U
Depth: 33 mm

Brand: Voxmachina

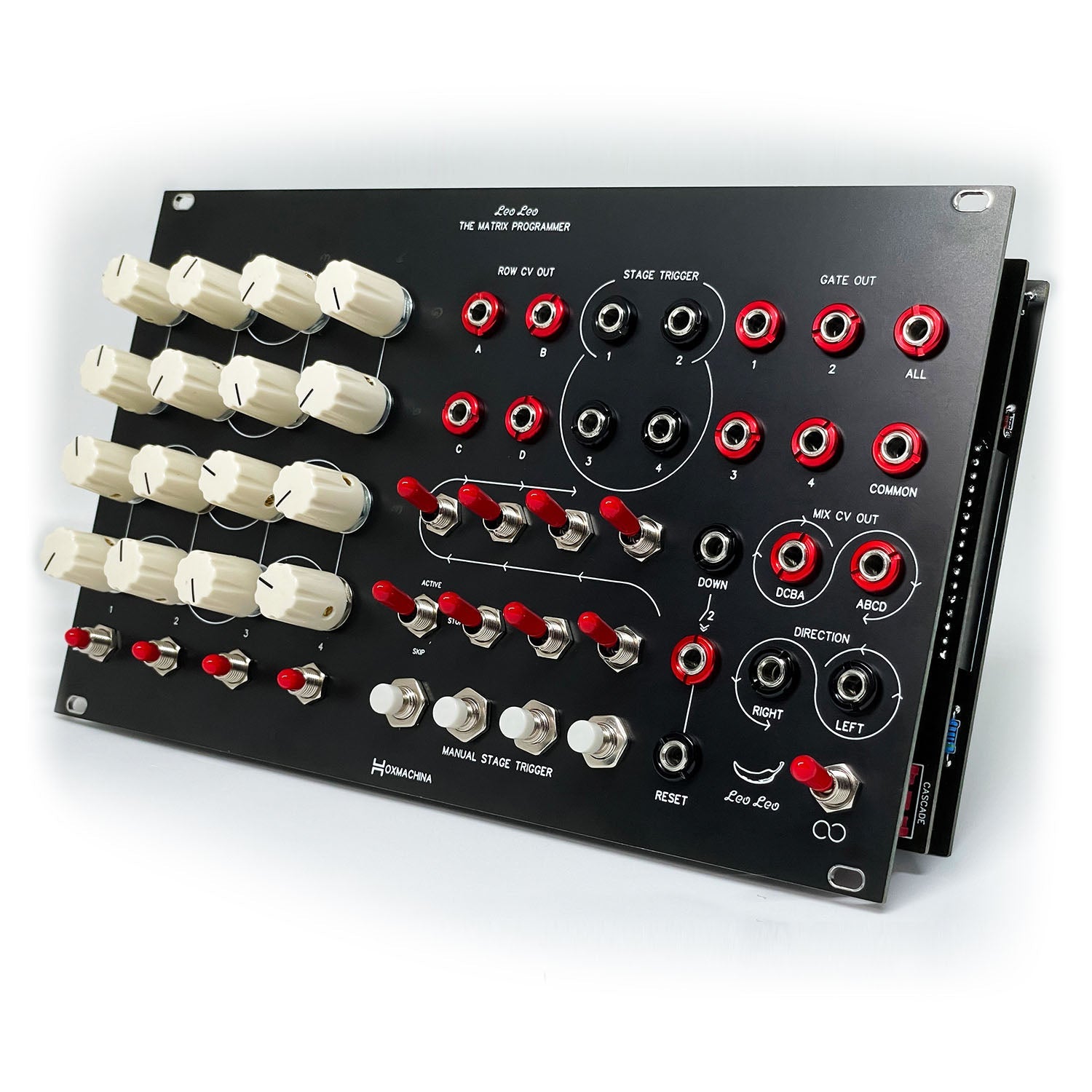

Analog matrix sequencer based on Serge's Programmer from the 70s, here added more complex functionality that can be used as 4x4 CV channels, 2x8 or even 2x16 CV channels, plus also the ability to cascade through the front panel switch to activate it (connects to another with a 10pin cable through the back panel), also adds total control over each stage in both directions (skip, stop, active and mute), operates under three different clock inputs: Left, Right and Down can be used from a precise sequencer to a generative and random mode as well with manual button triggers for each step.

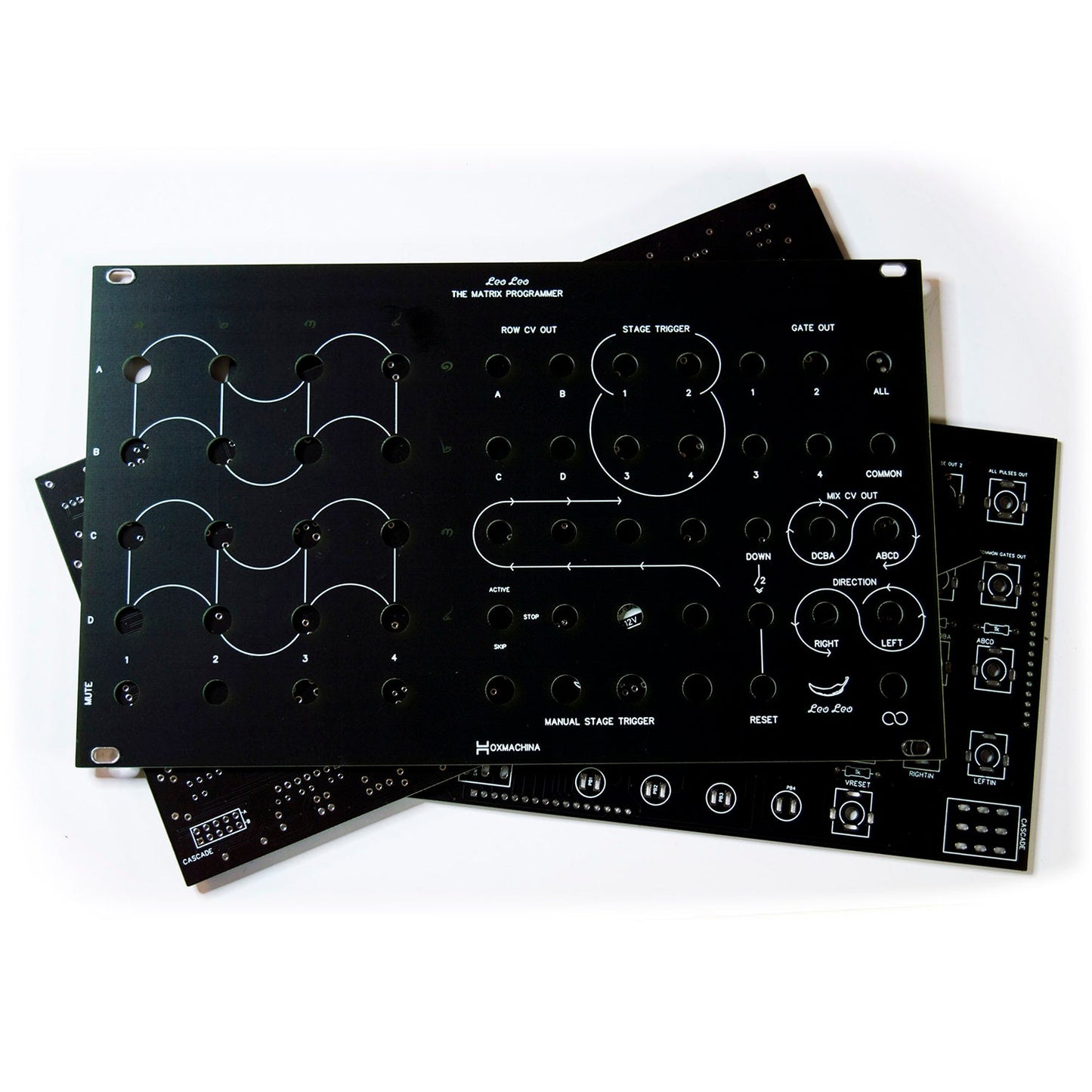

PCB KIT INCLUDES MAIN PCB + CONTROL PCB + FRONT PANEL.

All files including BOM and build instructions at Voxmachina's Github
