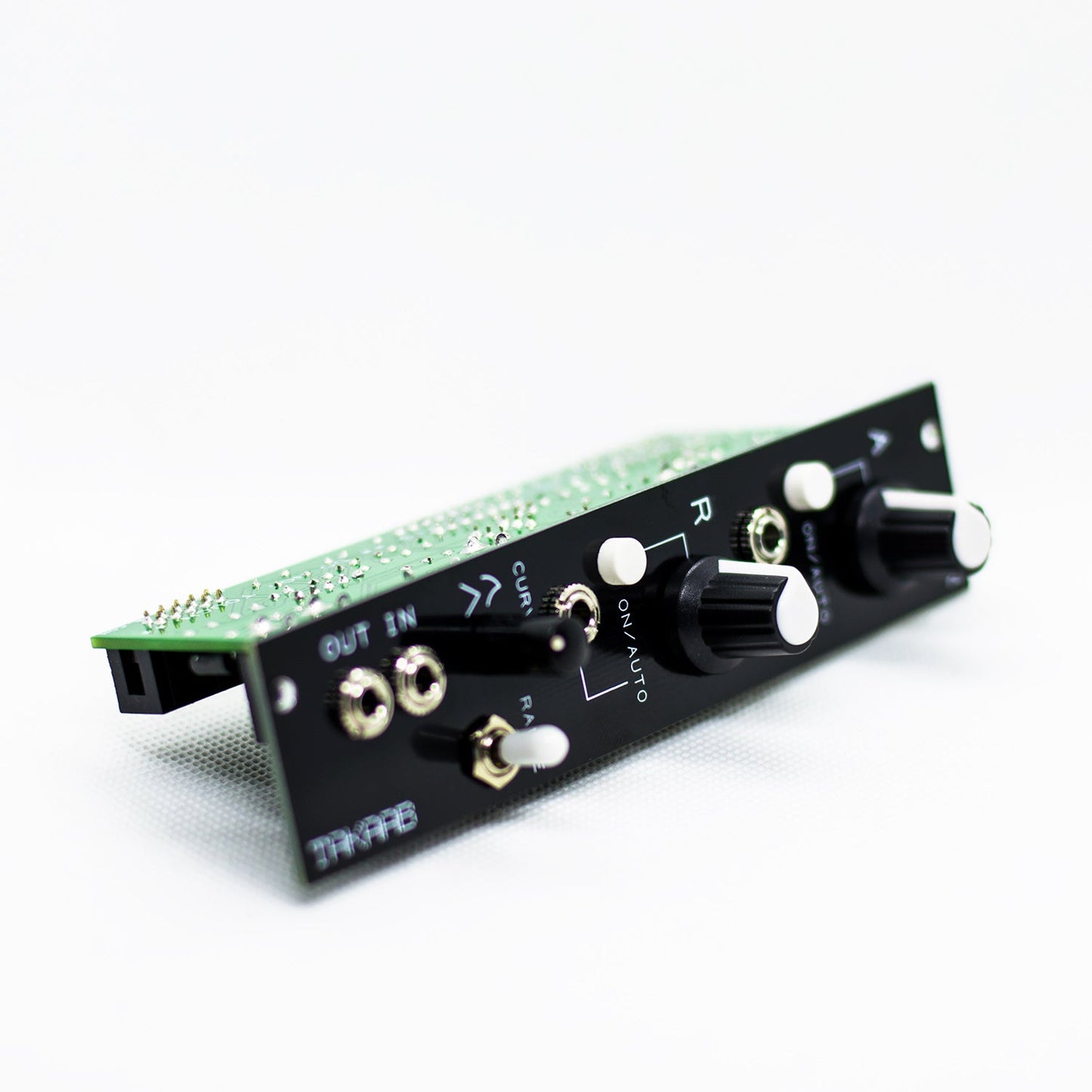

Takaab SAR V1 - Gate Controlled Slew Limiter / Slide-Portamento / AR Envelope

Takaab SAR V1 - Gate Controlled Slew Limiter / Slide-Portamento / AR Envelope

Regular price £45.00
Regular price Sale price £45.00
Sale Sold out
Shipping calculated at checkout.


Current Draw

+12V : 20mA
-12V : 10mA
+5V: 0mA


Width: 6 HP
Height: 3 U
Depth: 42 mm

Brand: Takaab by Siam Modular

The Takaab S.A.R (Slide, Attack, Release) is a voltage lag generator designed primarily to function as either a portamento/slide circuit or an AR envelope generator.

With both the push switches out (ON) a voltage applied to the main input will be outputted with any rises or falls in voltage being slowed down dependant on where the A (attack/rise) and R (release/fall) knobs are set to. Therefore, inputting a 1v/oct control voltage will result in a portamento effect, whilst a smooth rising and falling envelope can be generated by inputting a gate.

With the switches pushed in (AUTO) the lag effect will be normally off and will be switched on whenever a gate signal is present at one or both of the adjacent jack inputs. - If a jack is only inserted into one of these inputs then any gate will affect both A and R. Plugging separate jacks into both the A and R inputs will give independent gate switching of each of these parameters.

The ‘Curve’ knob gives control over the curve of the lag, ranging from nearly linear to a logarithmic curve. It also somewhat effects the overall length, with the lag becoming a little longer the more curved it is.

The range switch changes the range of the lag time: The centre position being the shortest and is most useful for slides or portamentos. The top position is the middle setting while the lower position is the longest range – most useful for envelopes. At this range you may hear some lag even with A and R at their lowest settings if using the unit as a portamento.

Size: 3cm (6HP) x 128.5cm x 6.1cm.
Module depth: 42mm.
1 signal input jack, one output jack, two gate input jacks to switch on A and R parameters.
Package contents: 1x module, 1x 10 pin power cable, 2x 3M screws, Jumper.
