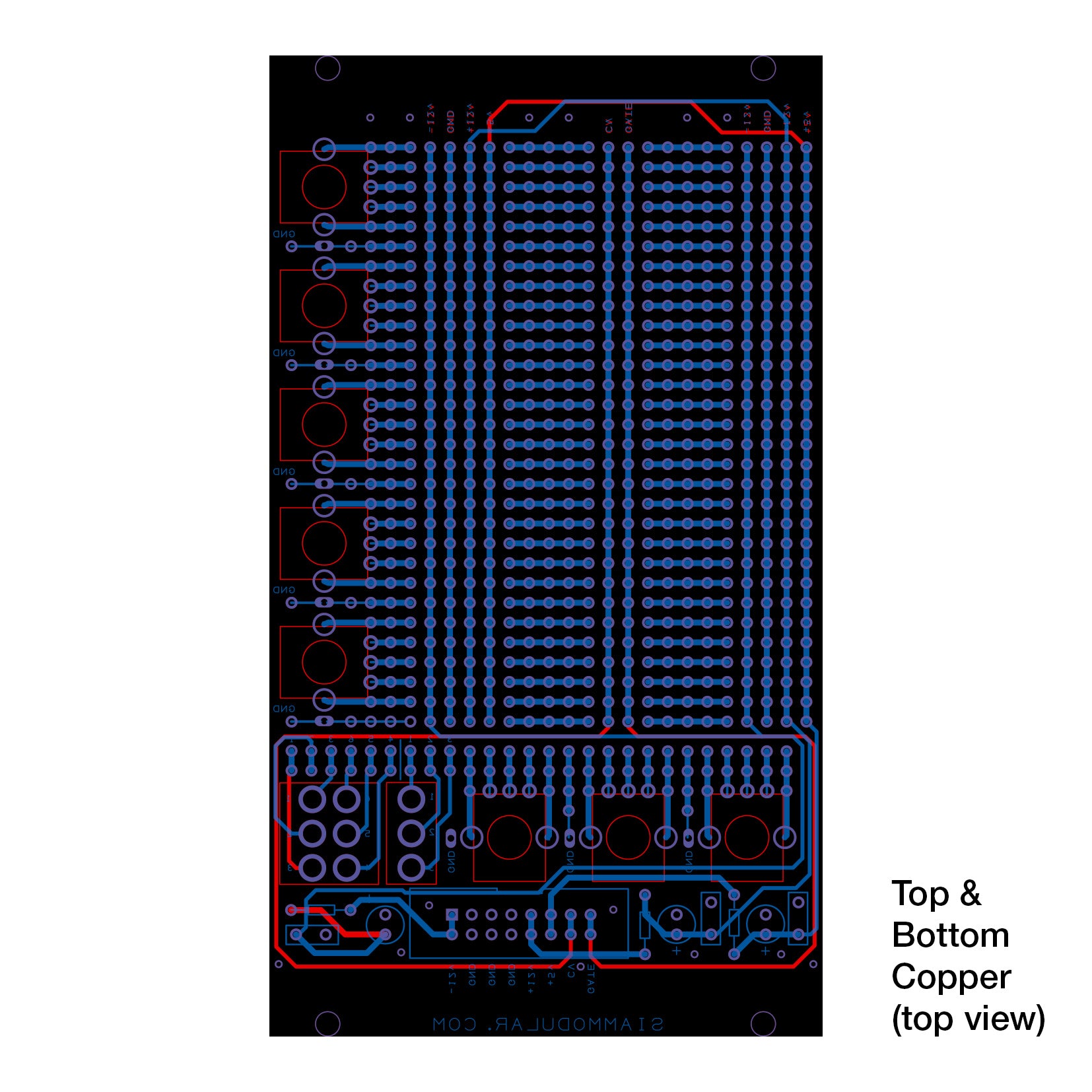

  • Eurorack Prototyping Board for modular synthesizer design. Top and bottom copper layers
  • Eurorack Prototyping Board for modular synthesizer design. Bottom Copper Layer
  • Eurorack Prototyping Board for modular synthesizer design. Top Copper Layer
1 7

Eurorack Prototyping Board (3 pcs)

Eurorack Prototyping Board (3 pcs)

£8.46
£8.46
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : mA
-12V : mA
+5V: mA

Size

Width: 14 HP
Height: 3 U
Depth:

Brand: Siam Modular

We developed these for prototyping in the Siam Modular workshop; it's is a protoboard that matches the layout of a standard breadboard whilst also fitting nicely into a 14hp space on your eurorack system.


The breadboard layout has rails for +12V, -12V and +5V which connect to the power inlet. At the power stage there are component footprints for one series component and two rail-to-ground-components per rail for your protection and filtering components. The CV and Gate bus rails also run up the center of the board.


On the front of the board there are footprints for two toggle switches (1x 3pin and 1x 3/6pin) as well as 8 universal footprints designed to take either a vertical potentiometer or Thonkikon jack socket.


1 set includes three boards.


COLOUR: Matt Black

View full details
