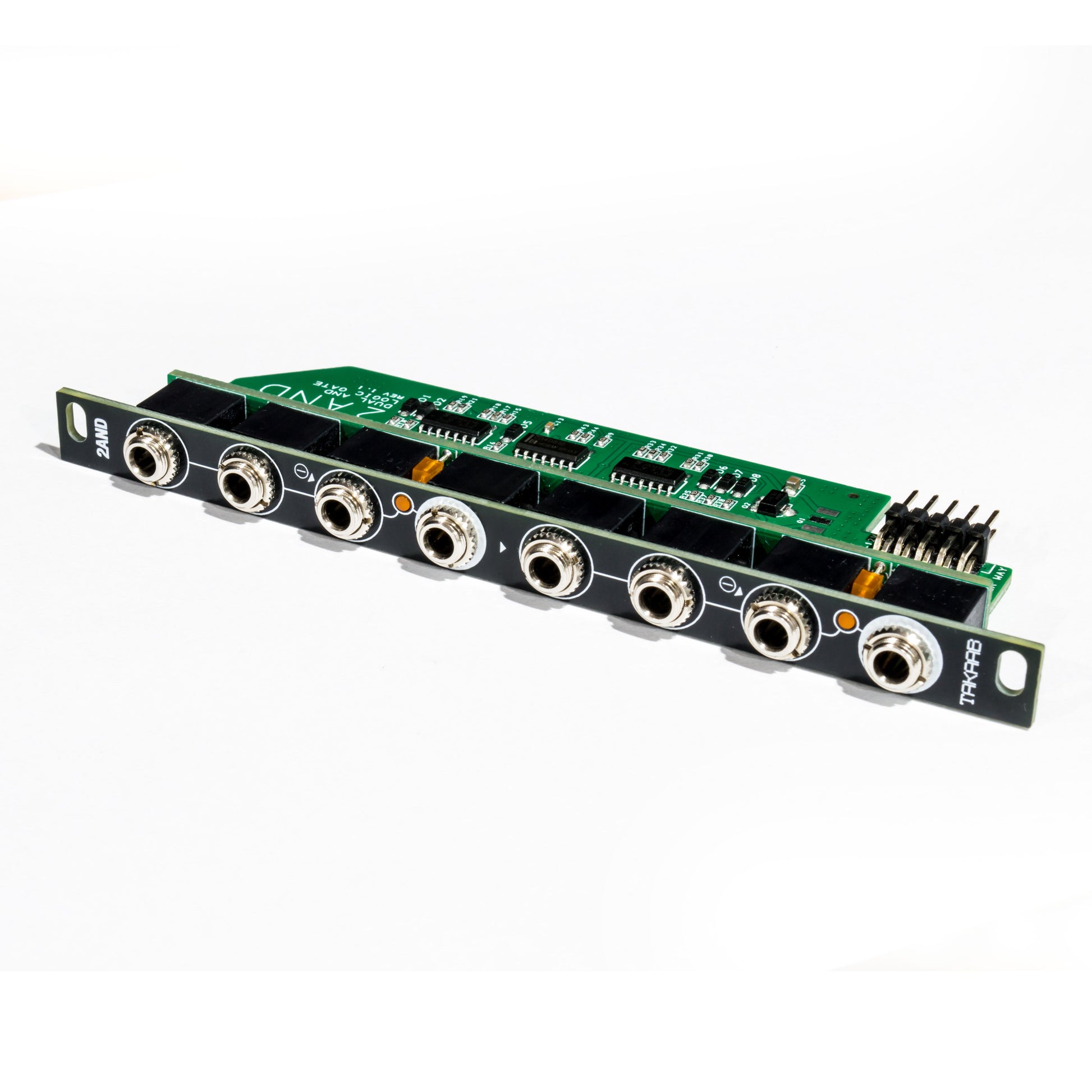

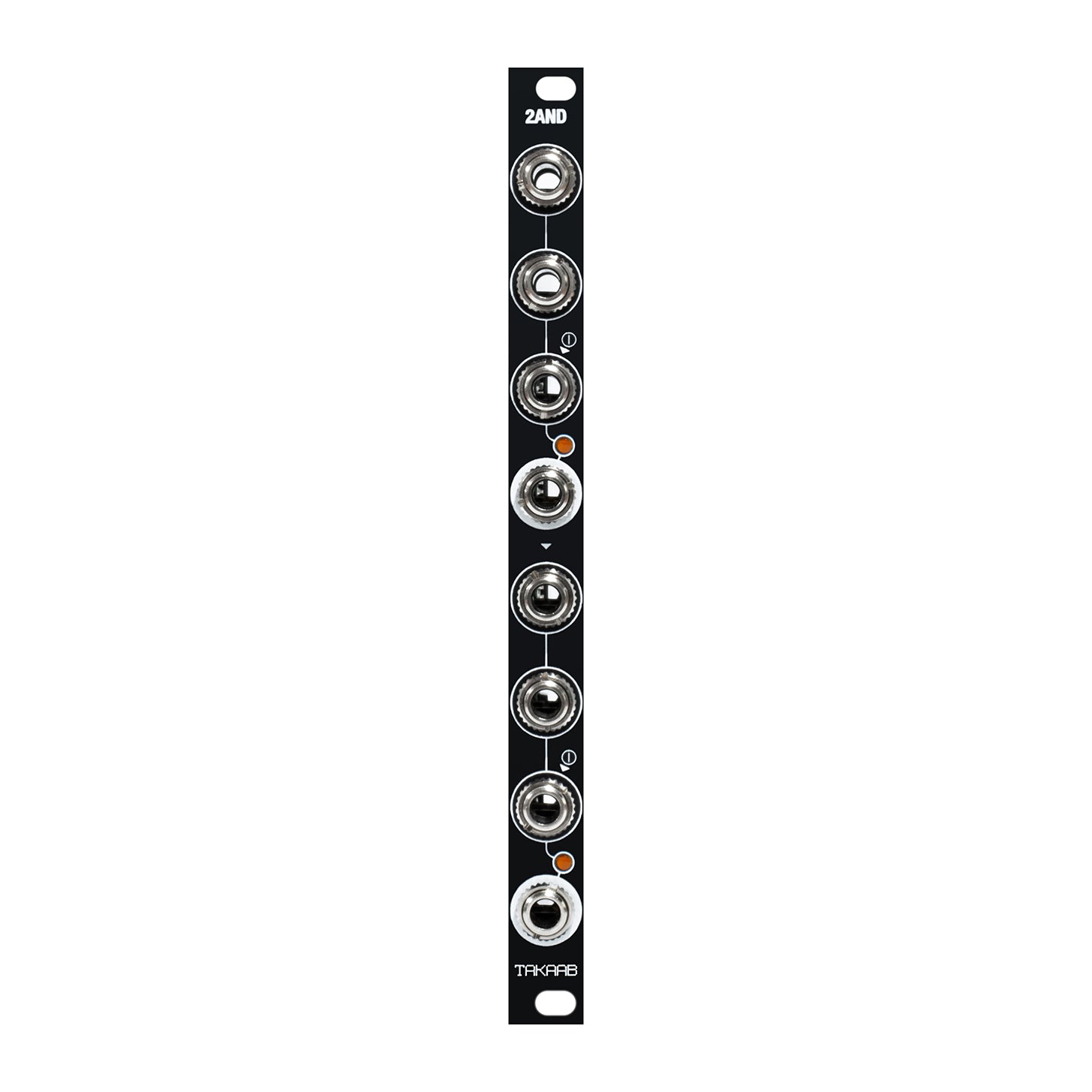

Takaab 2AND - Dual 2/3-in Logic AND Gate

Takaab 2AND - Dual 2/3-in Logic AND Gate

Regular price £48.00
Regular price Sale price £48.00
Sale Sold out
Shipping calculated at checkout.

Specifications

Current Draw

+12V : 12mA
-12V : 0mA
+5V: 0mA

Size

Width: 2 HP
Height: 3 U
Depth: 36 mm

Brand: Takaab by Siam Modular

So new we haven't taken photos yet! Get it here first...

The 2AND brings AND logic processing to the clocks and gates of your eurorack setup.

There are two separate 3-input gates, however as input 3 on both gates is normalised high, they can also be used as 2-input gates using only the top two inputs of each gate

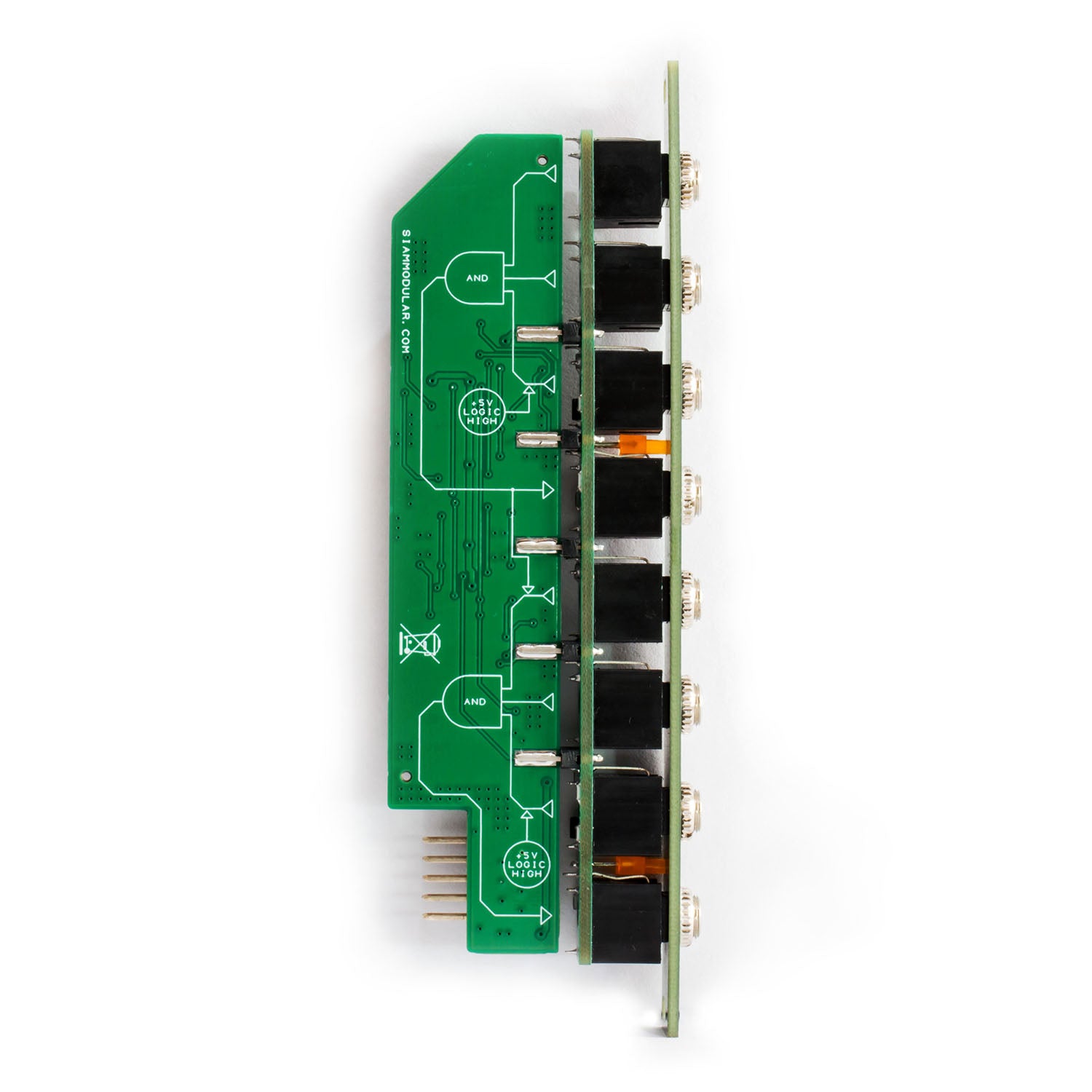

The top gate (Gate 1) output is normalised to the first input of the bottom gate (Gate 2). This means that with no jack present at Gate 2 In 1, the unit acts as a single 5-input (or 4-input) AND gate with the result at the output of Gate 2 (whilst also having the output of gate 1 available separately).

All inputs of an AND gate must be high for the output to be high. So if jacks are present at ins 1 & 2 both must carry a high signal for the gate to output high. If jacks are present at ins 1, 2 and 3 then they must all carry a high signal for the output to go high.

Requires inputs of 0.5V or higher to count as high. Output signal is 5V at high and 0V at low.
